Compare the Topo Toppers models

The main choice is profile, usable space, and overall size.

Factory tour

How a Topo Toppers camper gets built

A seven-stage tour of the Ventura process, from flat aluminum through final inspection and truck installation.

Seven-stage factory tour

Aluminum
Form
Weld
Fit
Tent
Assemble
Handoff

From the full factory tour

5052 aluminum and laser cutting

Watch this stage · 0:53

In this stage

Thomas from Topo Toppers standing beside sheet aluminum near the laser-cutting station — The sheet aluminum at the beginning of the camper-building process.

A sheet of aluminum positioned on the fiber-laser cutting table — A loaded sheet before the fiber laser cuts the nested parts.

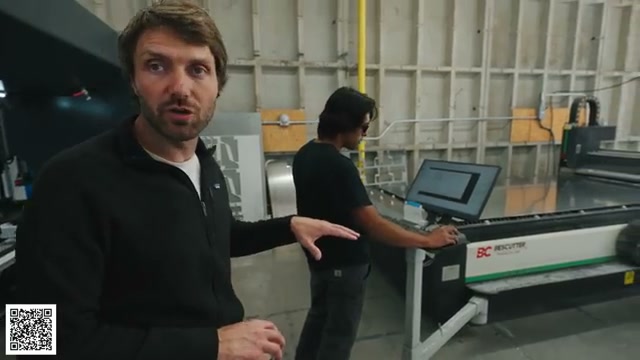

Thomas and a laser operator beside the fiber-laser control station — The cutting program is checked before the operator begins the run.

Case file

Why Topo Toppers chose formed and welded aluminum

Topo Toppers chose formed 5052 sheet because it can be bent and welded, does not rust, and provides the strength-to-weight balance the company wanted.

A Topo Toppers camper frame being welded in the Ventura factory

SourceManufacturer rationale · Thomas from Topo Toppers

LimitThis explains Topo Toppers’ design choice. It does not prove welded construction universally lasts longer than extrusion-based campers.

Stage 02

Deburr and form the parts

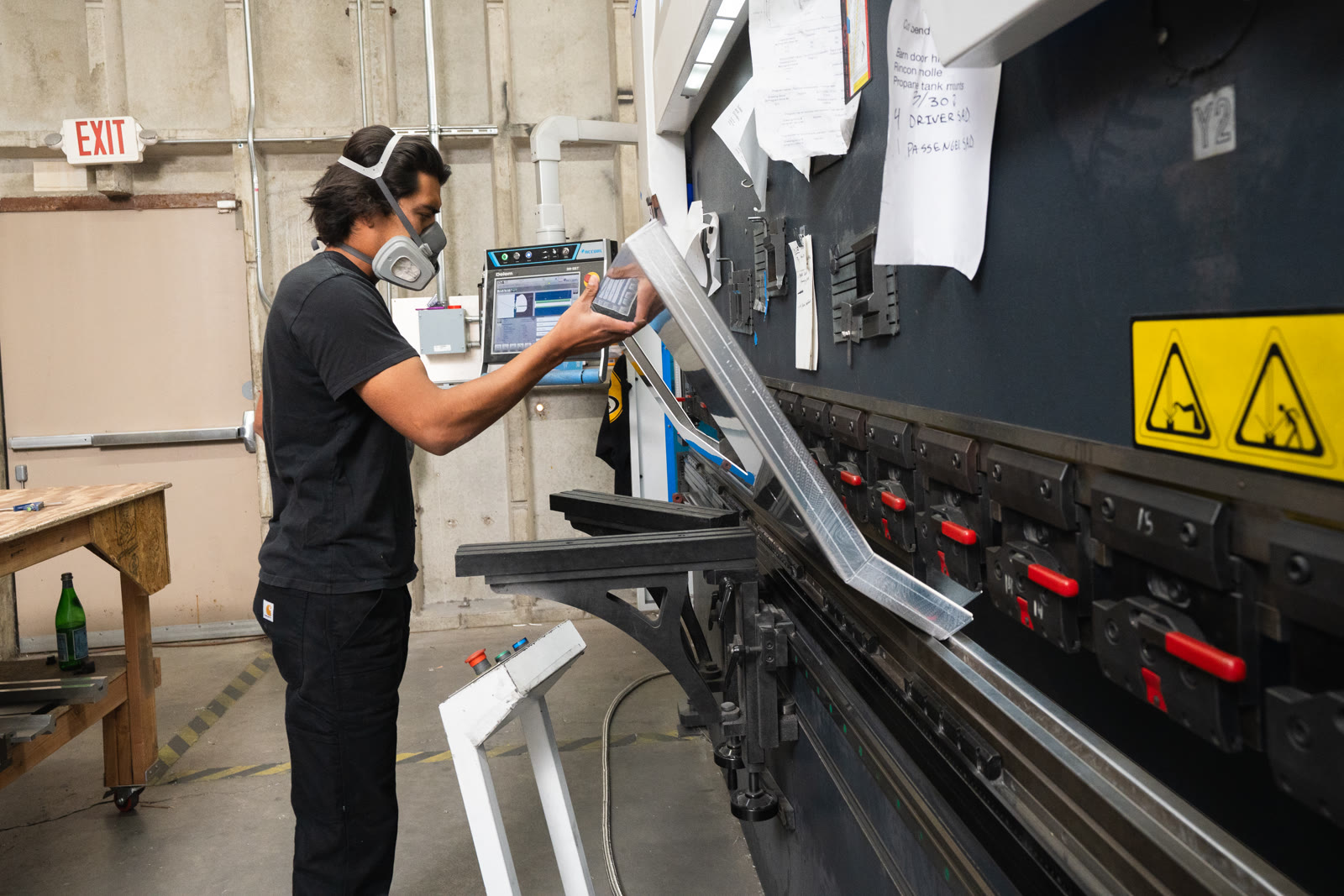

A worker holds a long narrow silver piece beside the controls of the large bending machine. — A worker positions a narrow metal piece at the press brake.

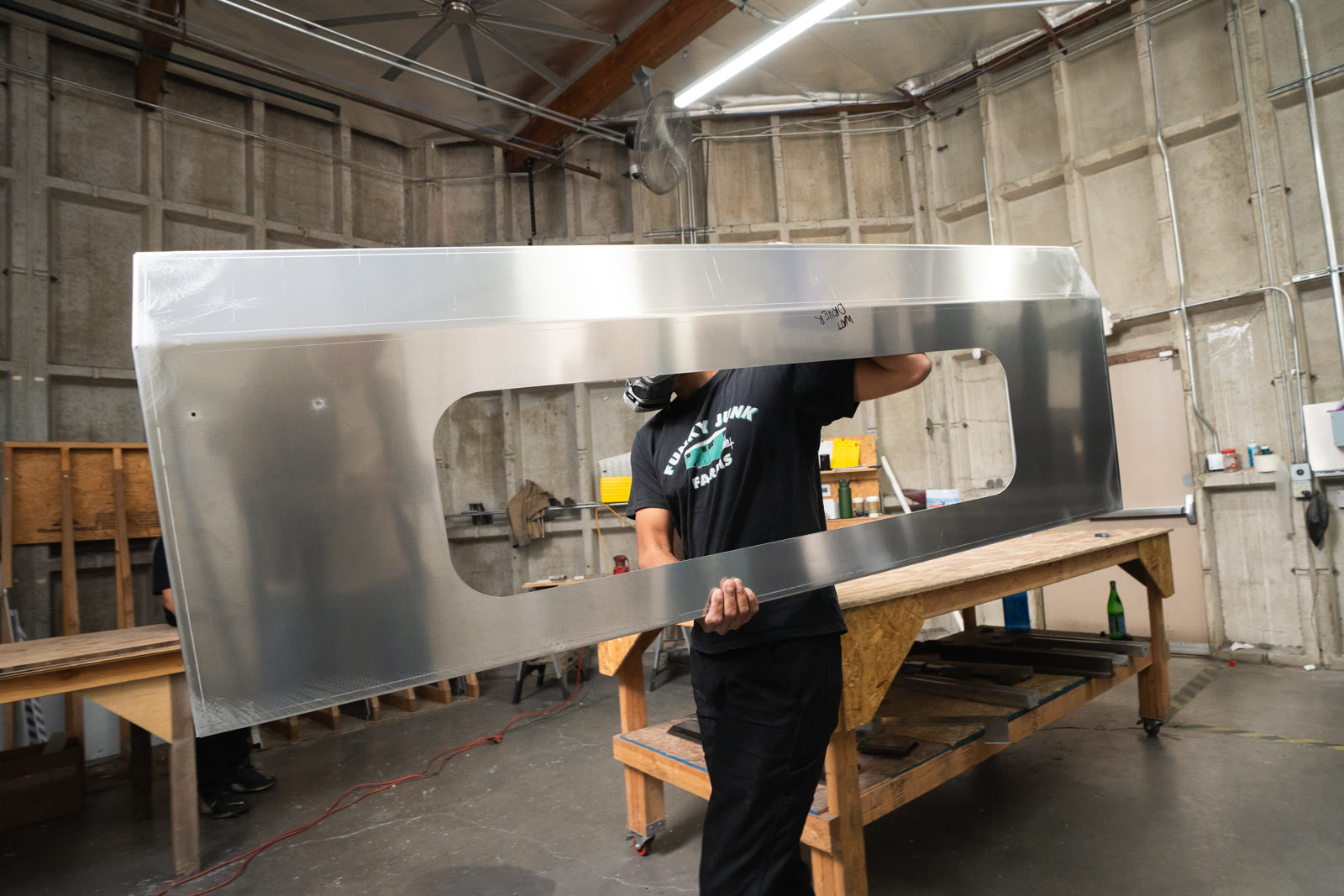

A worker carries a large silver panel with a wide rectangular opening past a wood workbench. — A formed panel is moved through the factory.

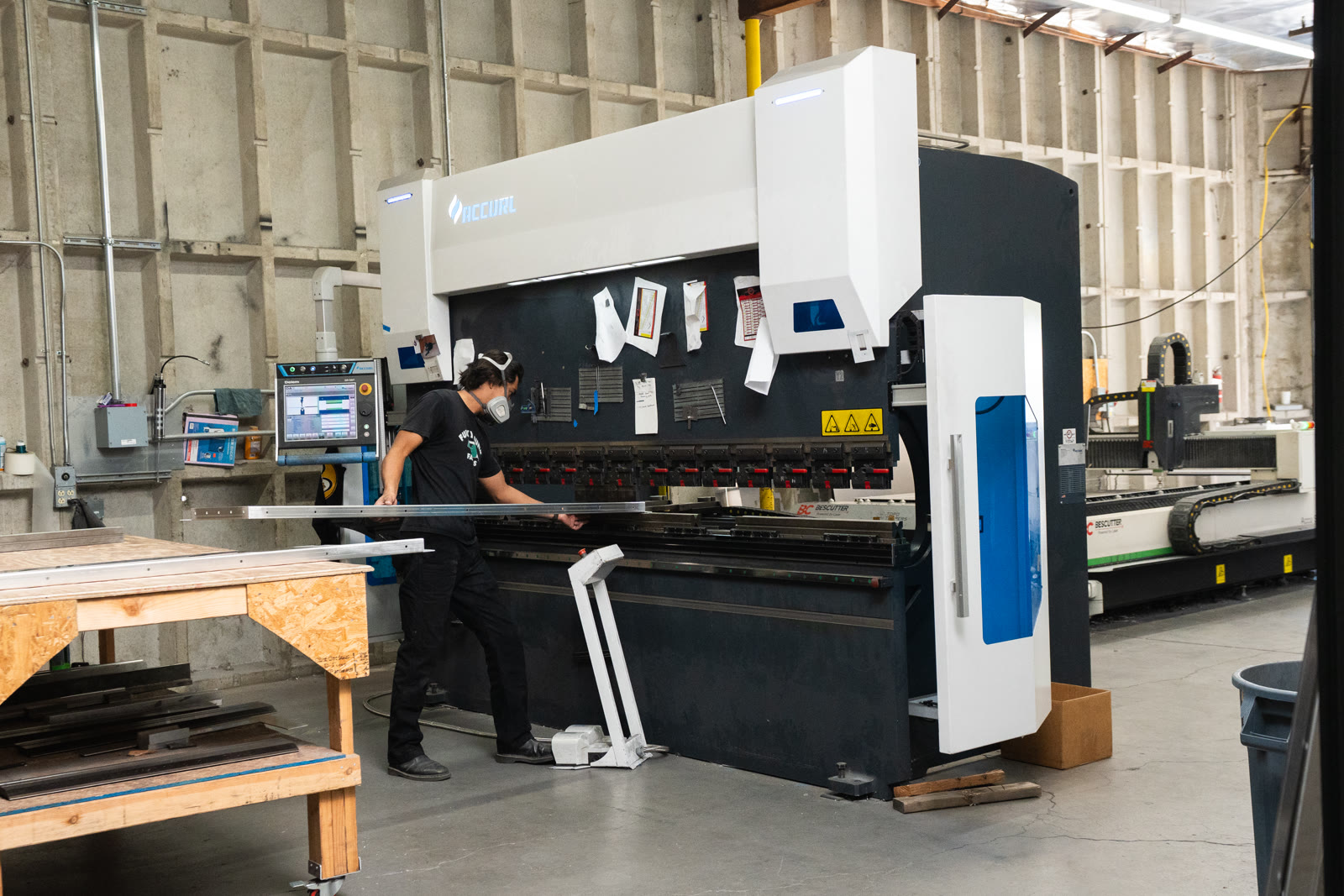

A worker stands at the center of the large white-and-black press brake inside the factory. — Wide view of press-brake forming work.

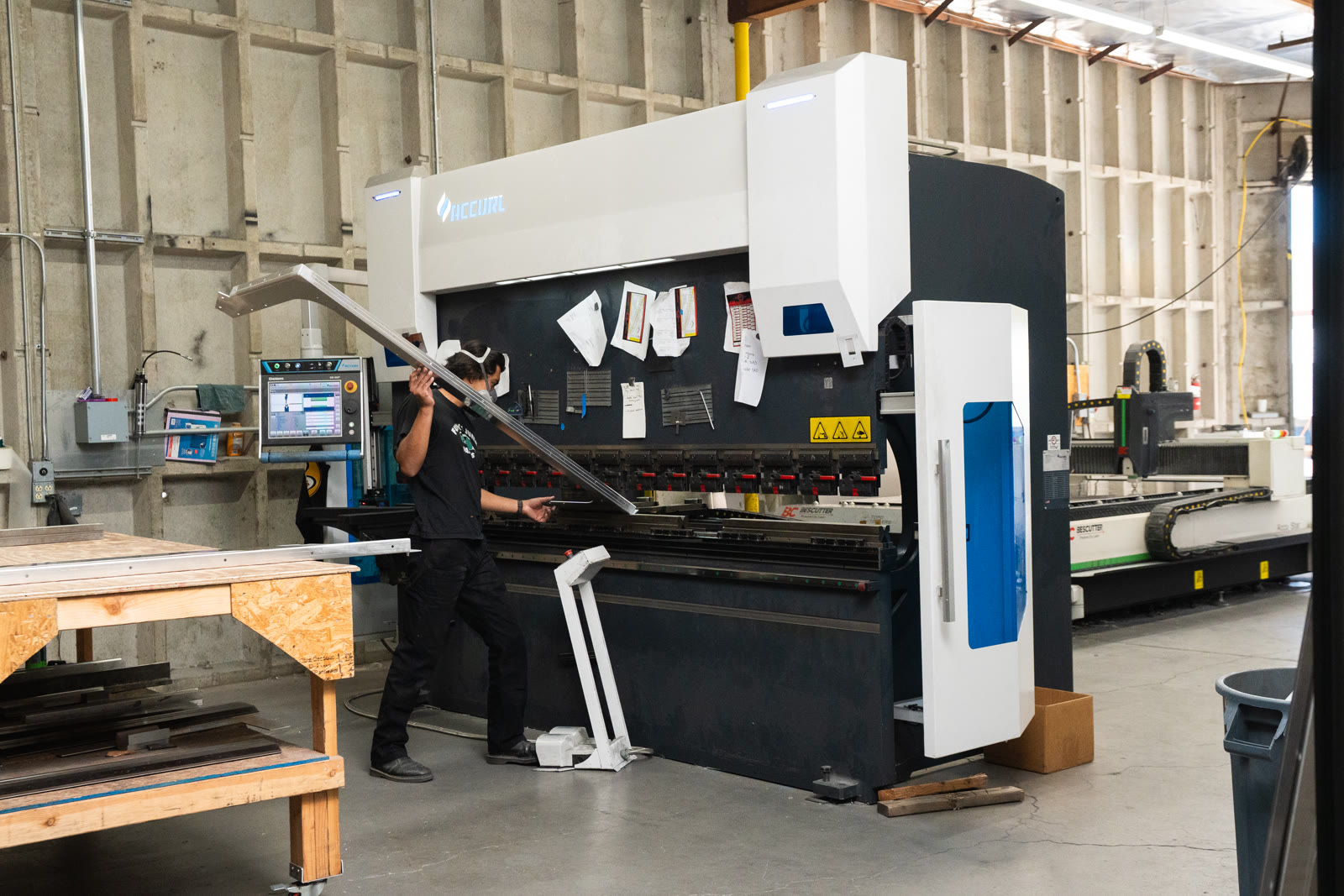

A worker raises one end of a long narrow silver piece beside the bending machine. — A long metal piece is lifted at the press brake.

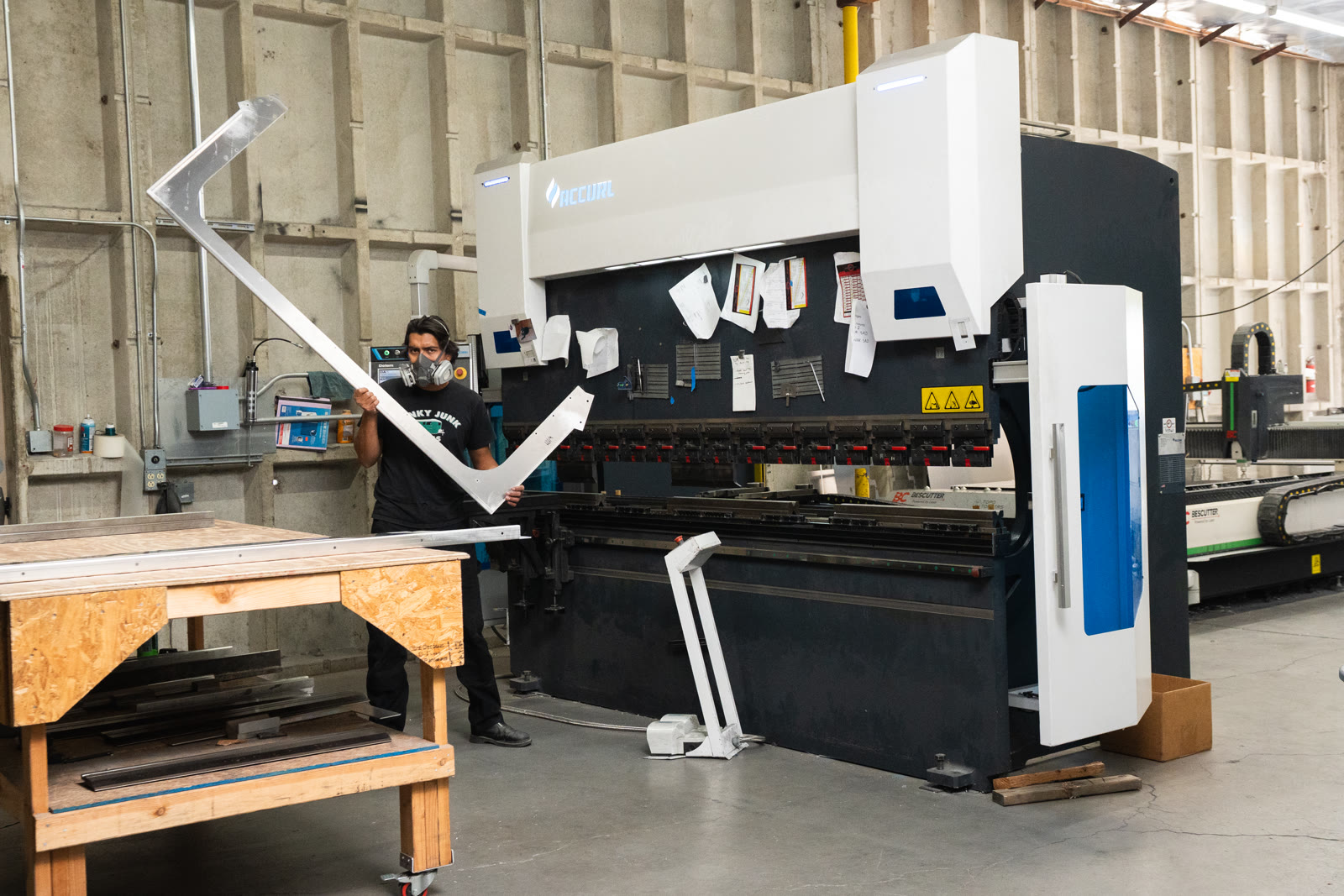

A worker holds a large angular silver frame in front of the white-and-black bending machine. — A large formed frame is carried away from the press brake.

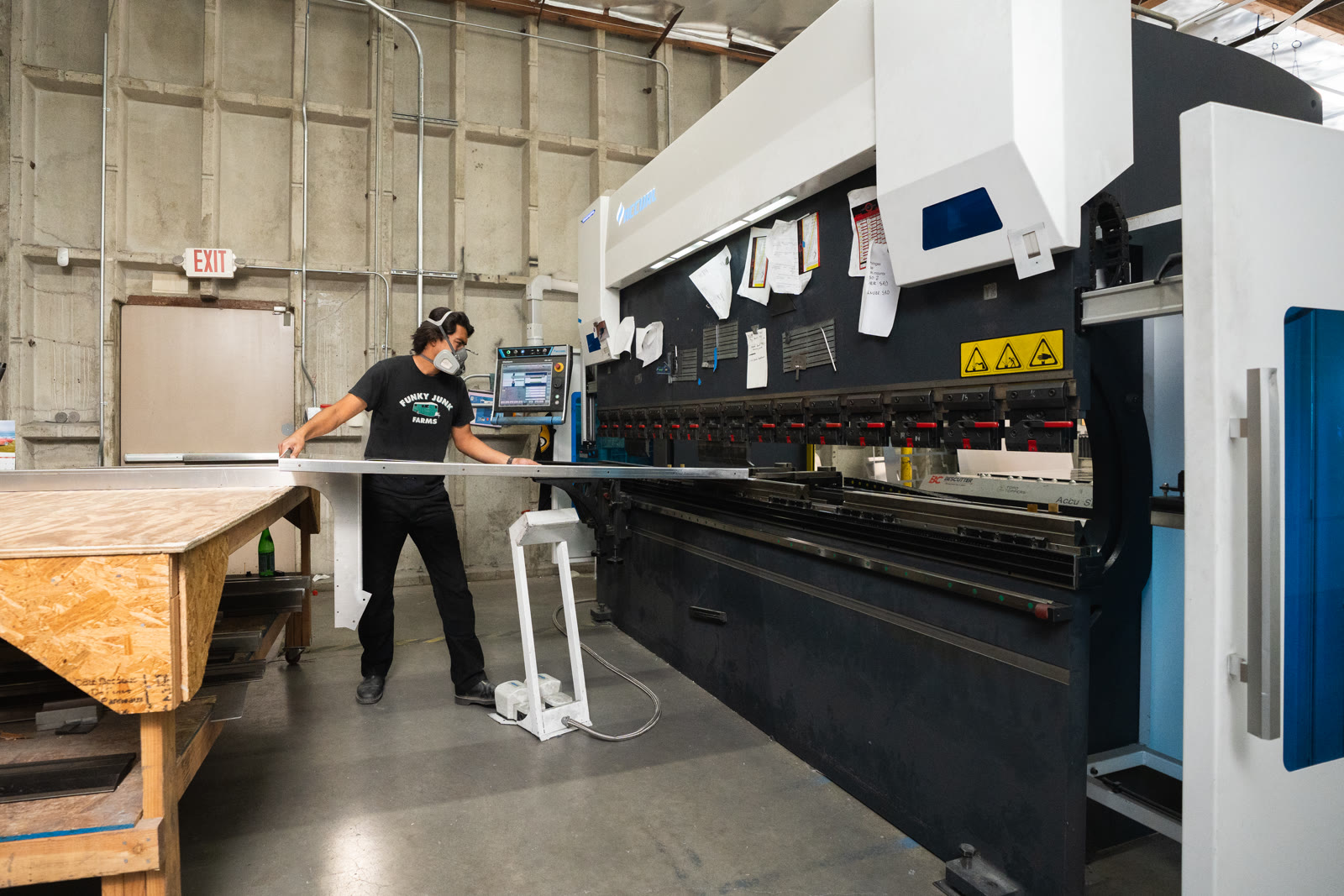

A worker carries a long silver panel between a plywood workbench and the press brake. — A worker handles a long formed panel beside the machine.

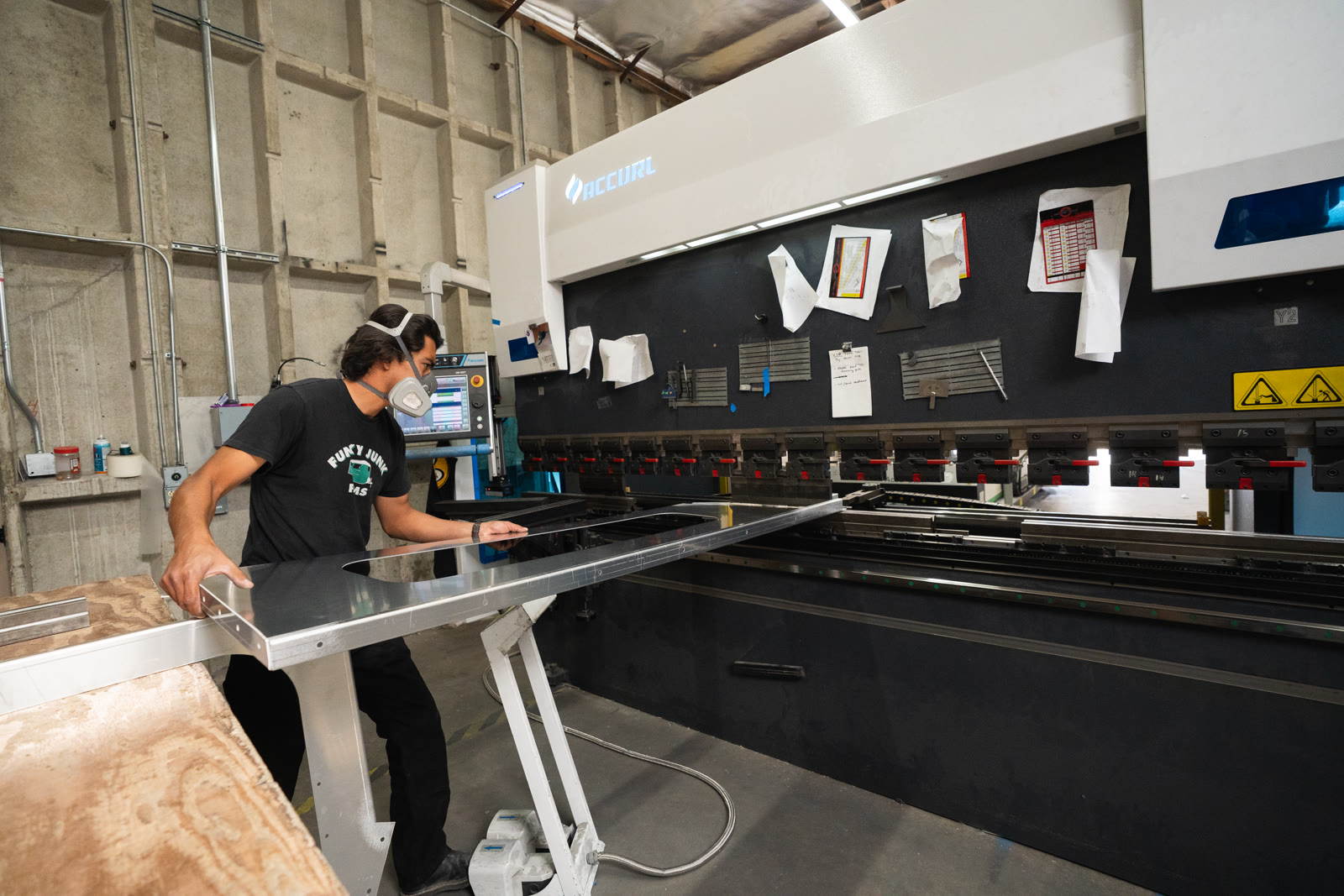

A worker carries a wide angular silver panel beside the press brake and plywood bench. — A bent metal panel is moved onto the work area.

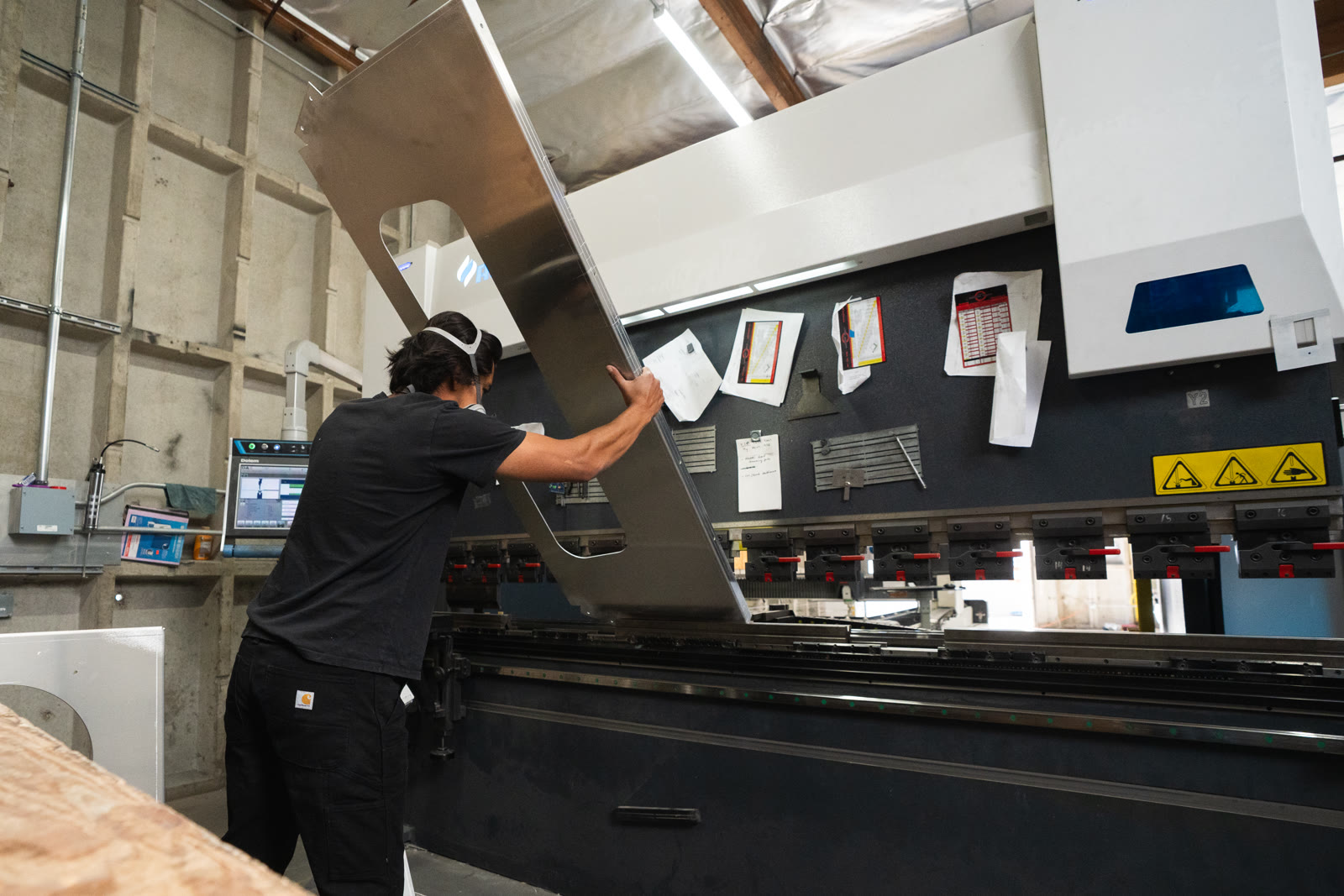

A worker lifts a broad silver panel toward the tooling of the bending machine. — A large metal panel is positioned at the press brake.

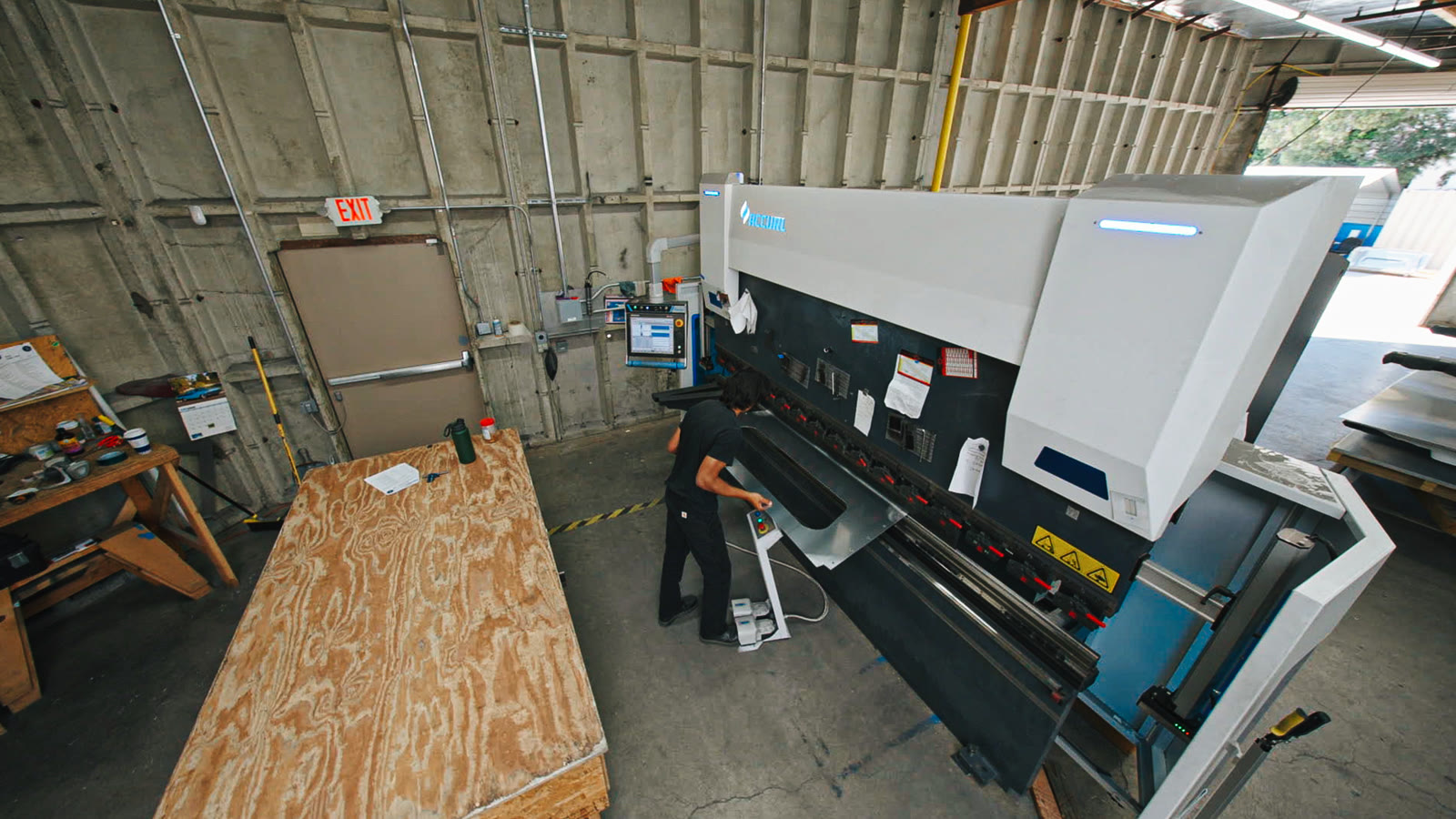

The large white-and-black bending machine seen from above with the plywood workbench in front. — Overhead view of the press-brake work area.

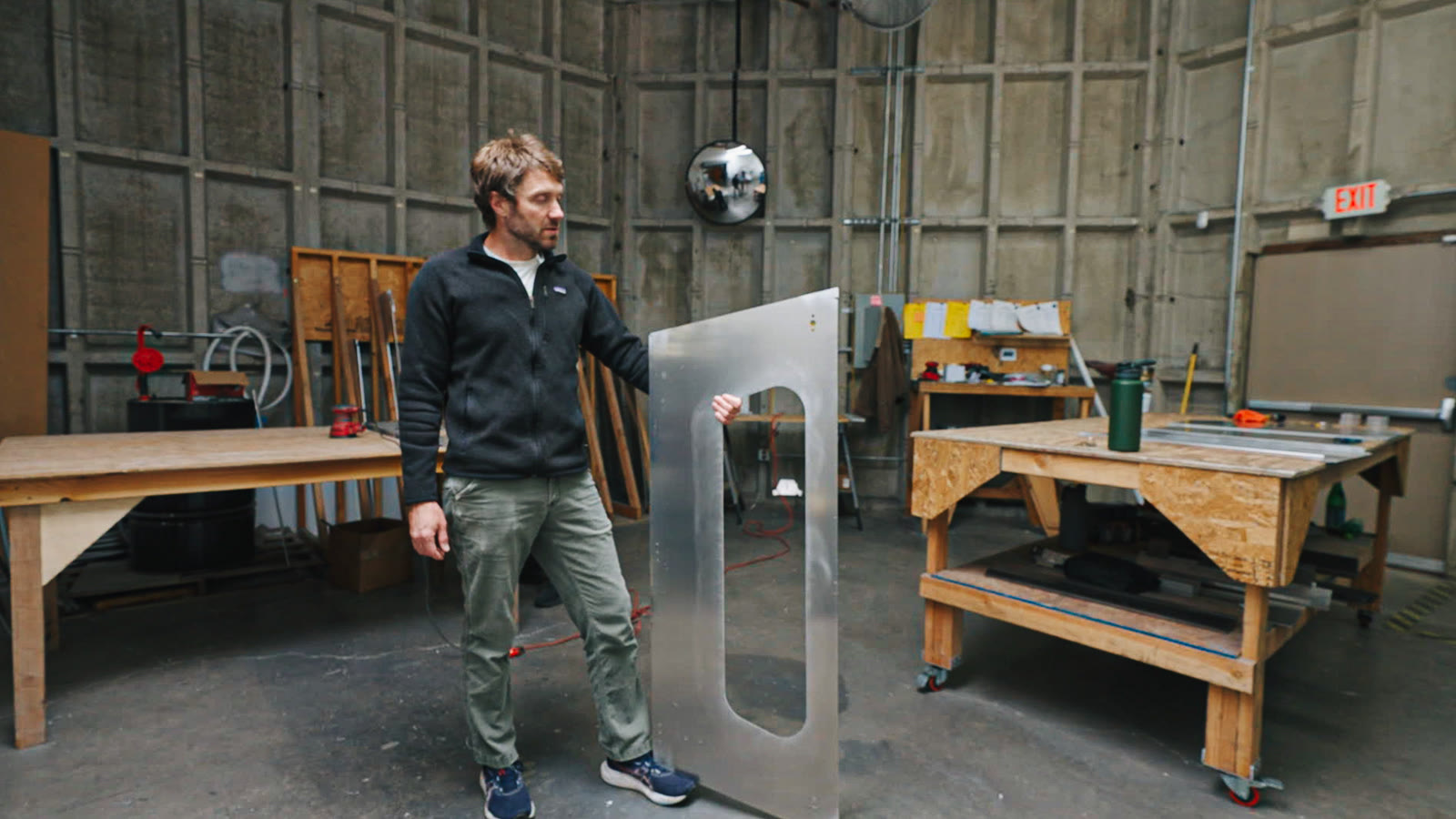

A worker standing with a tall silver panel containing two rectangular openings in the factory work area. — A formed panel is displayed beside the workbench.

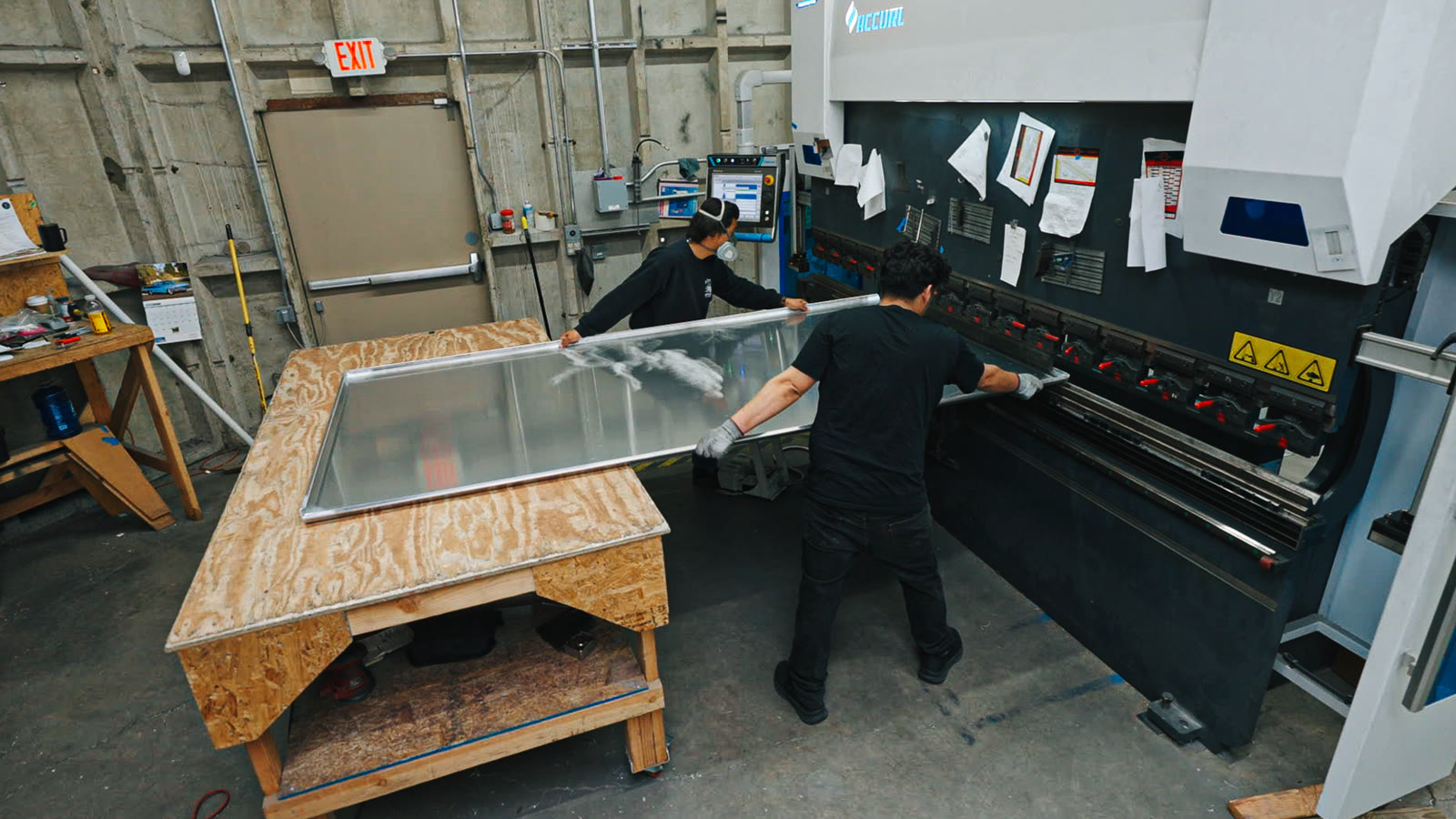

A worker guides a broad silver panel beside the bending machine and plywood workbench. — Overhead view of a panel being handled at the press brake.

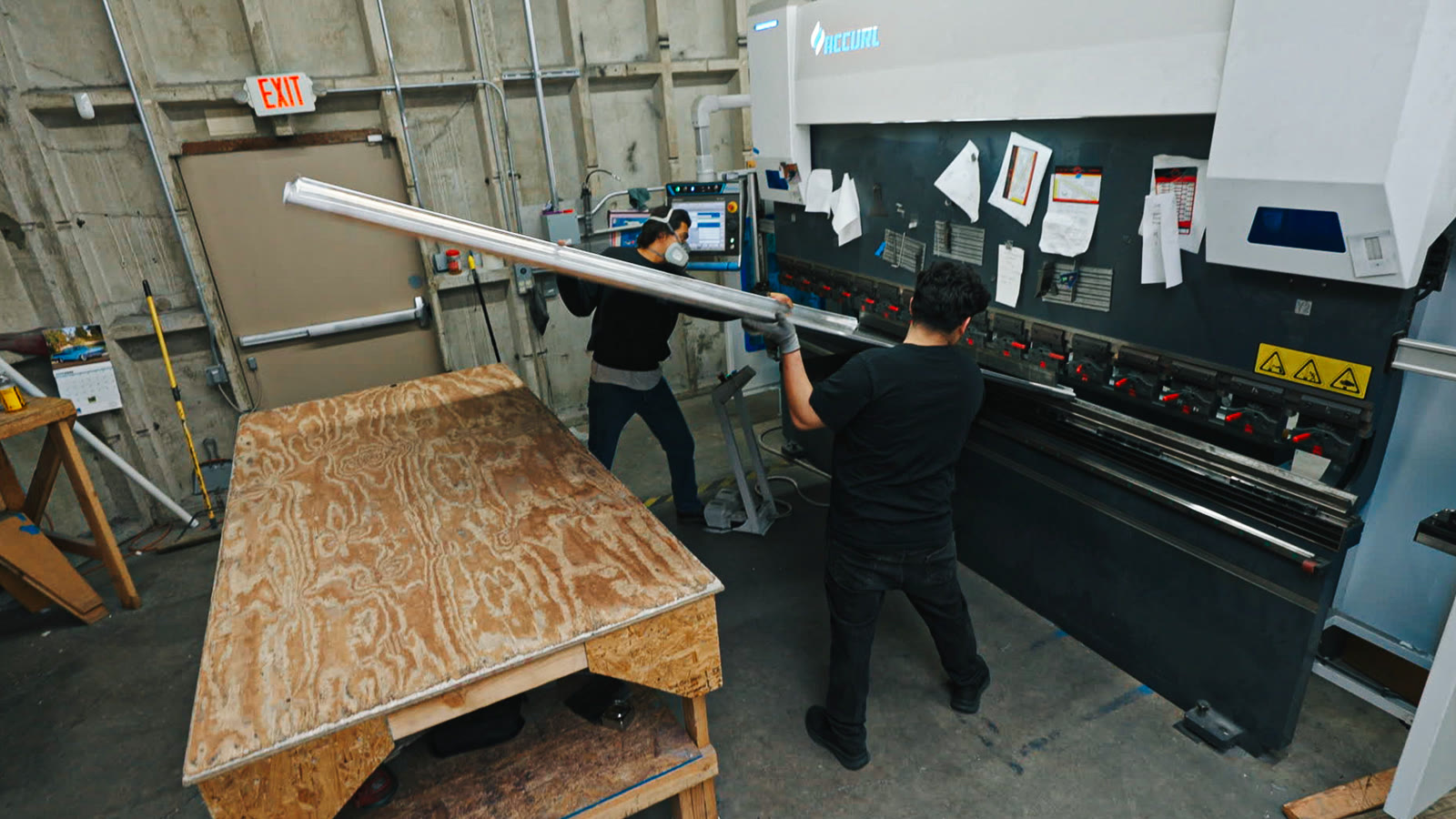

Overhead view of a worker holding a long narrow metal panel between the machine and plywood bench. — A long panel is aligned beside the press brake.

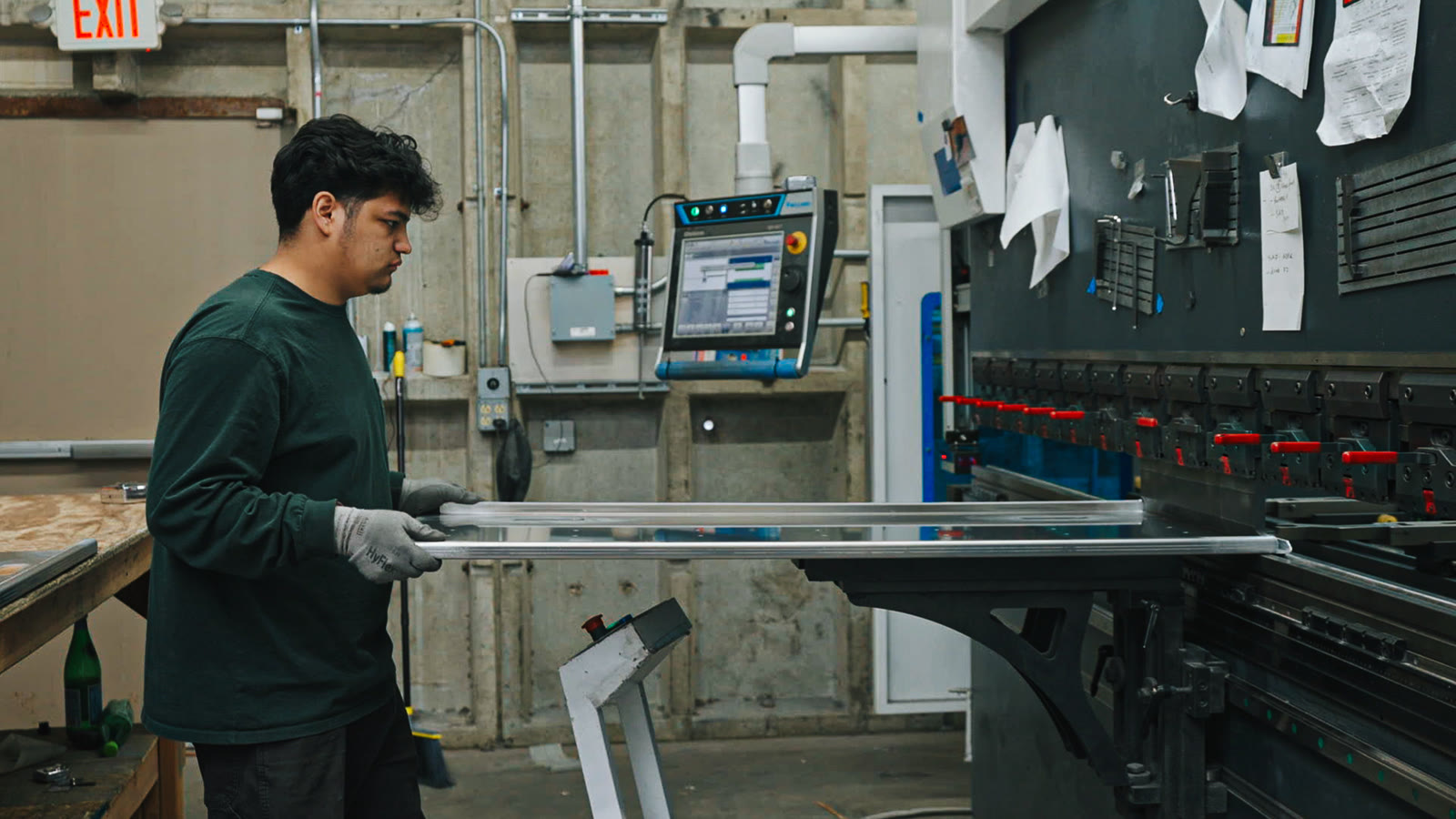

A worker holding a long rectangular silver frame in front of the press-brake control console. — A worker carries a metal frame past the machine controls.

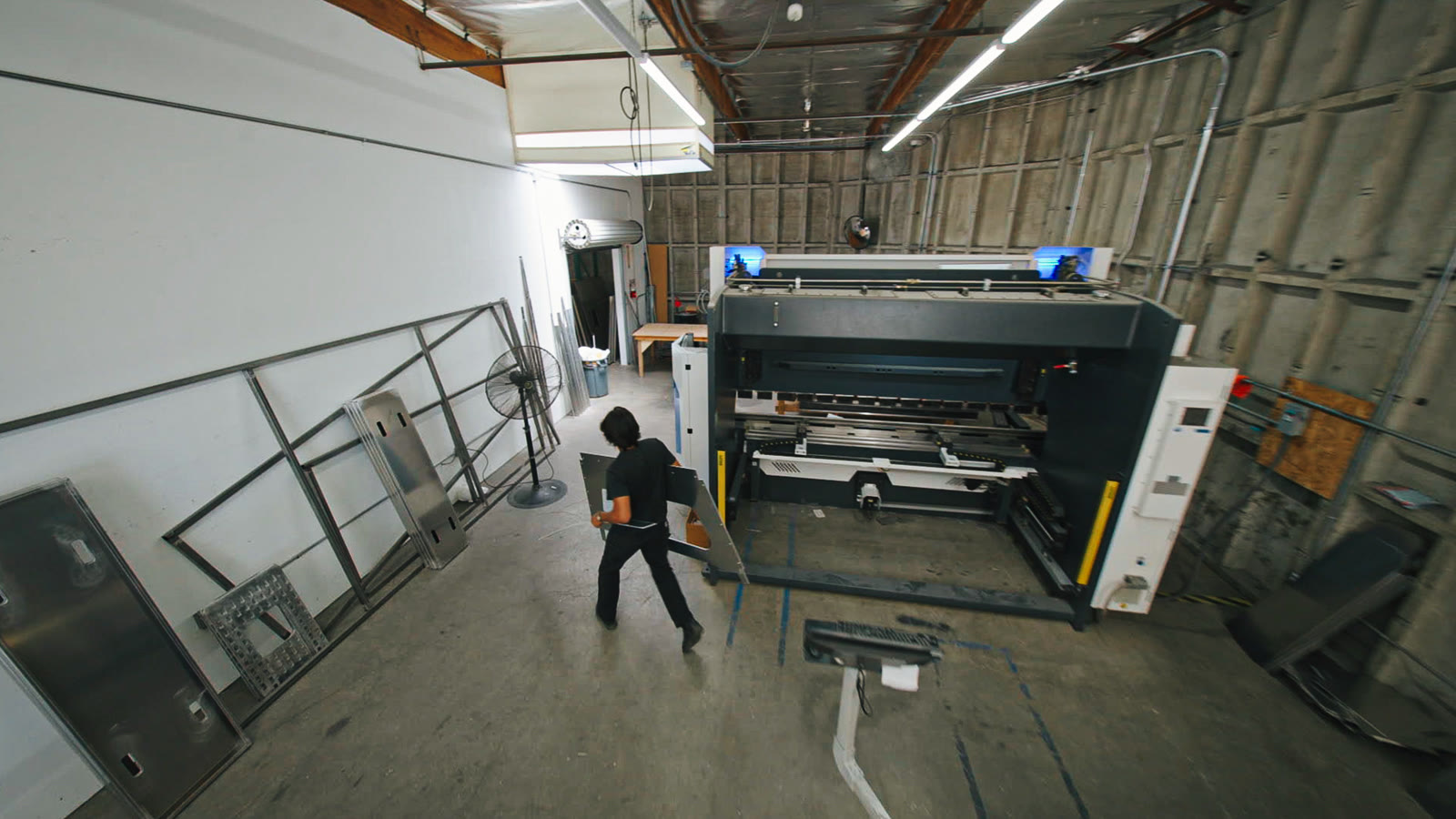

The press brake and surrounding tables seen from above, with a worker crossing the open floor. — High-angle view of the bending station.

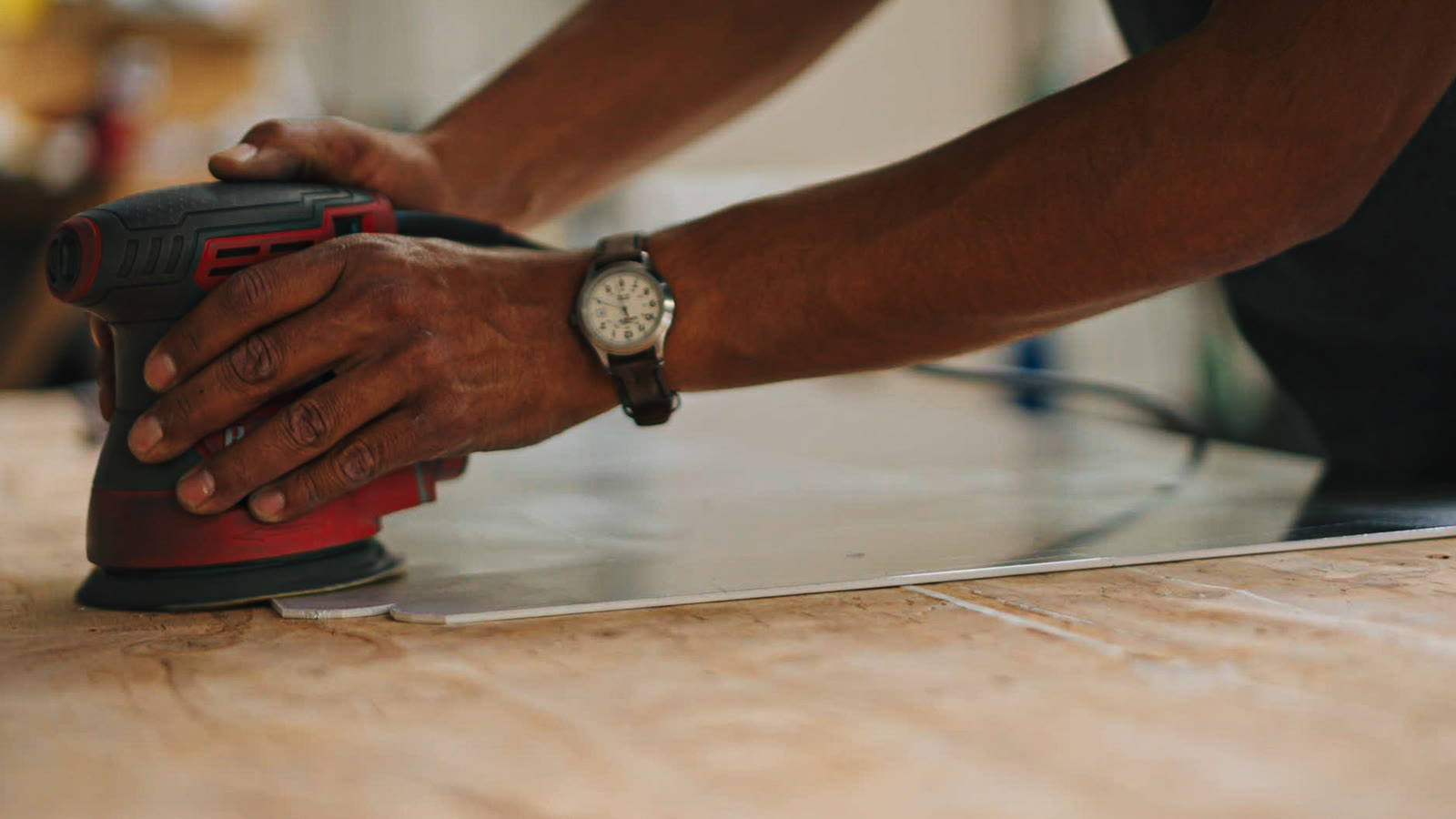

Close view of two hands guiding a round power sander across a flat silver sheet. — A worker sands the surface of a metal panel.

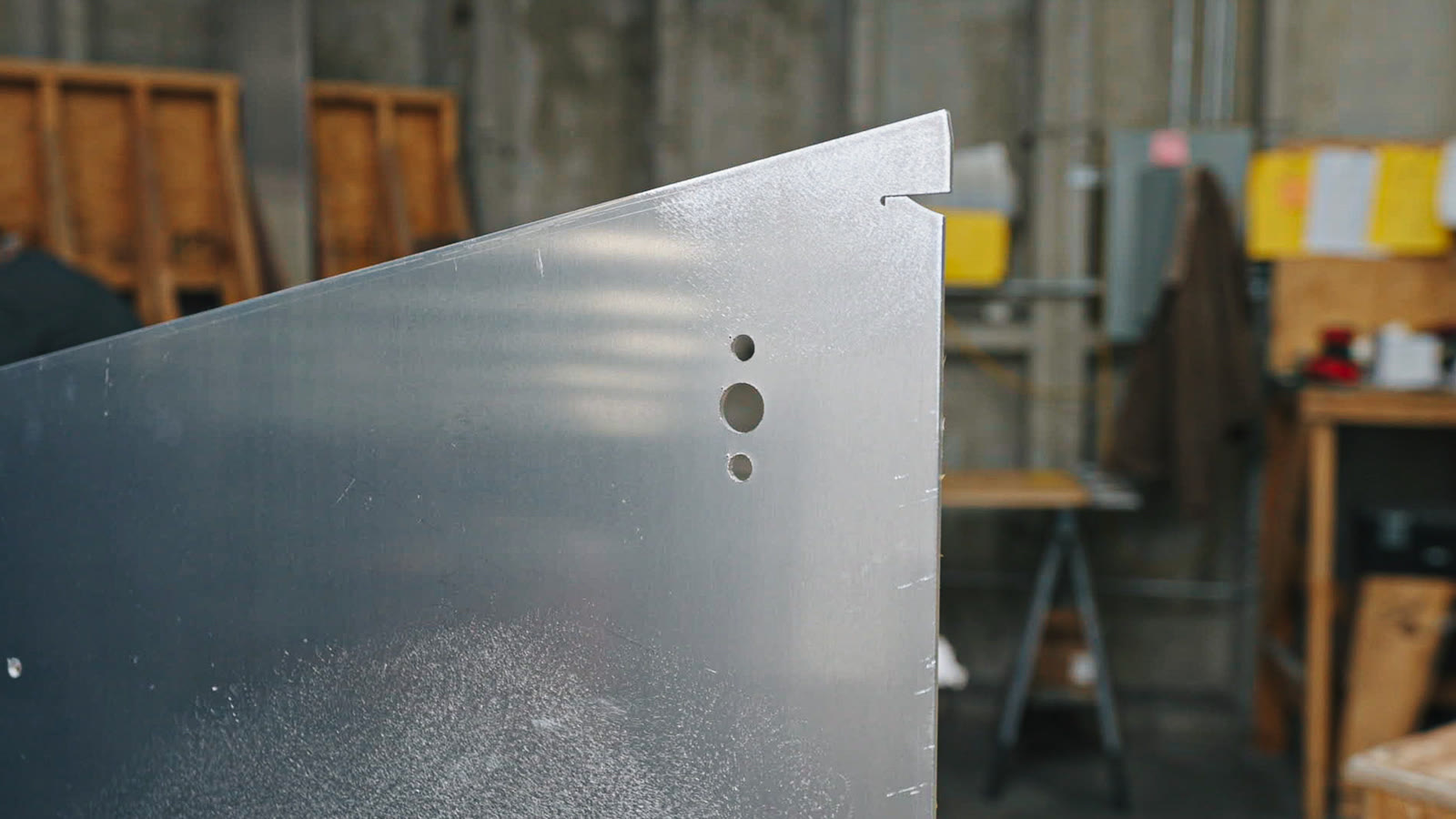

Close view of the corner and folded edge of a silver panel with several small round holes. — Edge detail on a formed metal panel.

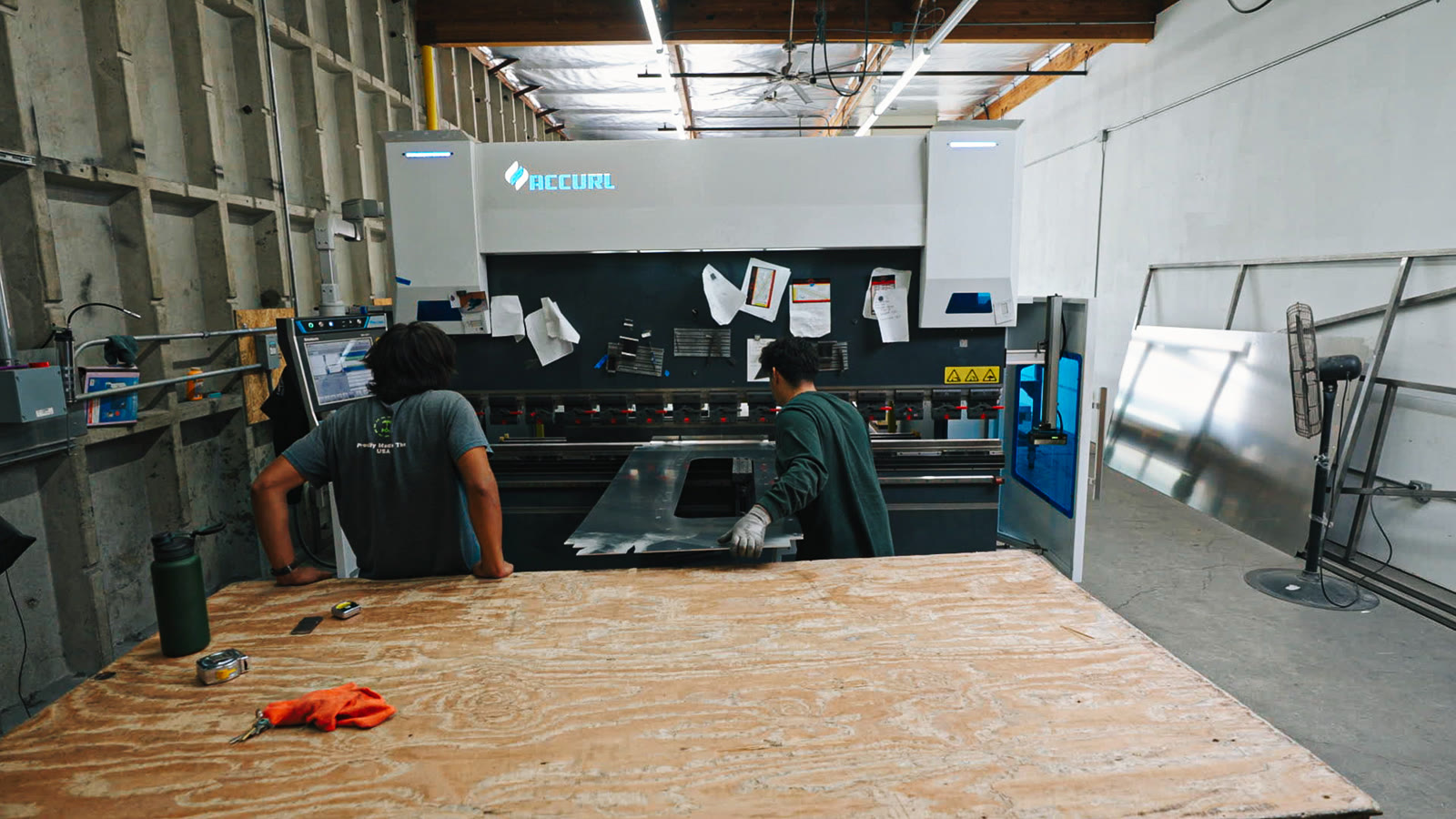

A plywood-topped table fills the foreground with workers and the bending machine behind it. — Work area in front of the press brake.

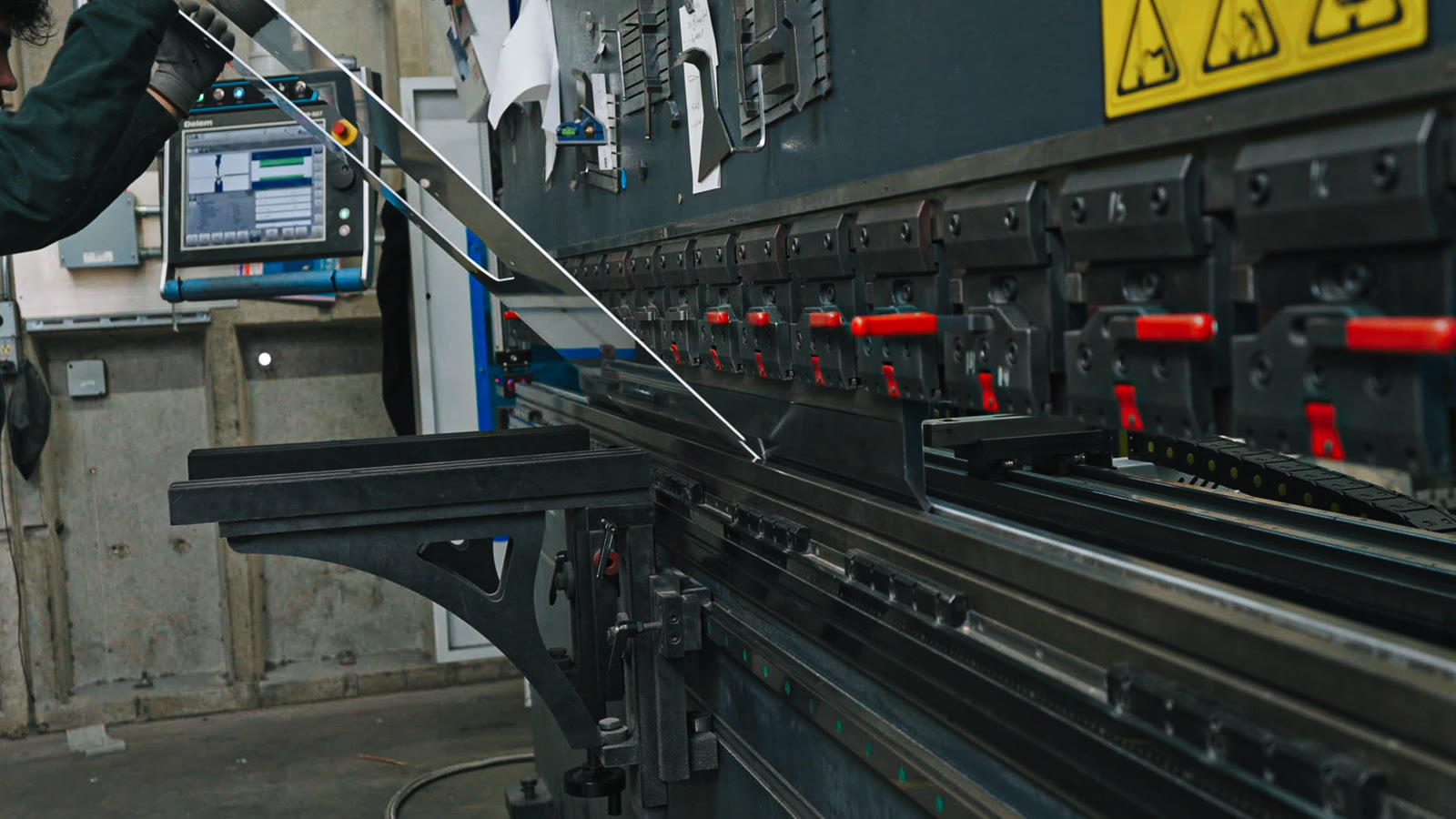

Close side view of the bending machine with a long angular metal piece extending from its tooling. — Tooling detail at the press brake.

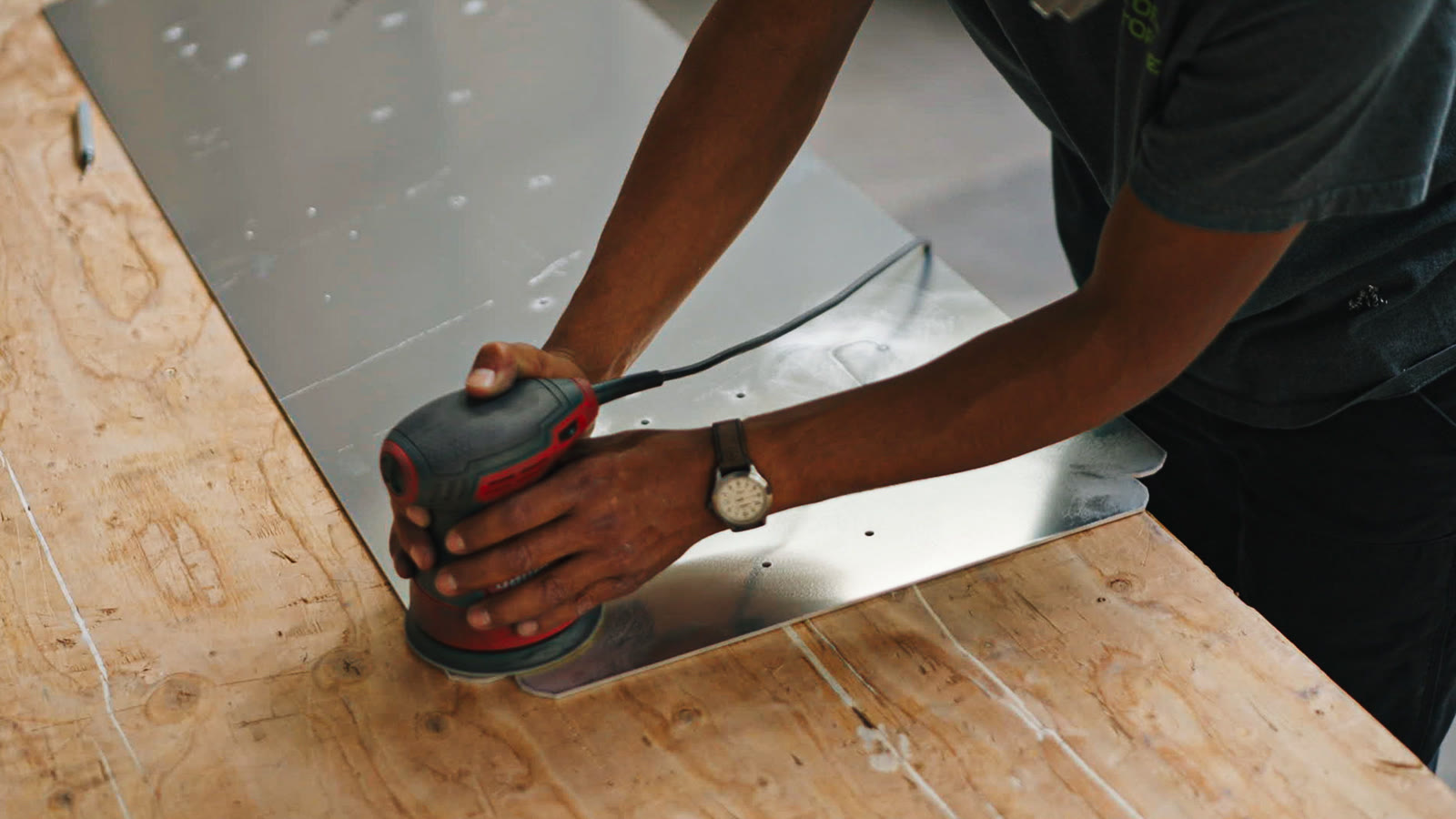

Close view of a worker using a round power sander on a silver panel atop plywood. — A second metal panel is sanded on the workbench.

What happens

Fresh-cut parts are deburred, and the areas that will be welded are sanded before the pieces go to the press brake. The first bend is checked before the operator continues through the batch.

Why this step exists

Removing burrs and surface oxidation prepares the weld areas. Bending turns the flat pieces into doors, rails, panels, and other camper components.

What to notice

Not every bend carries the same consequence. Thomas gives the Rincon side-panel chamfer as a model-specific example where a small angle error can keep adjoining parts from lining up.

Source and scope: Thomas from Topo Toppers · The Rincon example is model-specific, not a universal tolerance.

Stage 03

TIG-weld, grind, and inspect

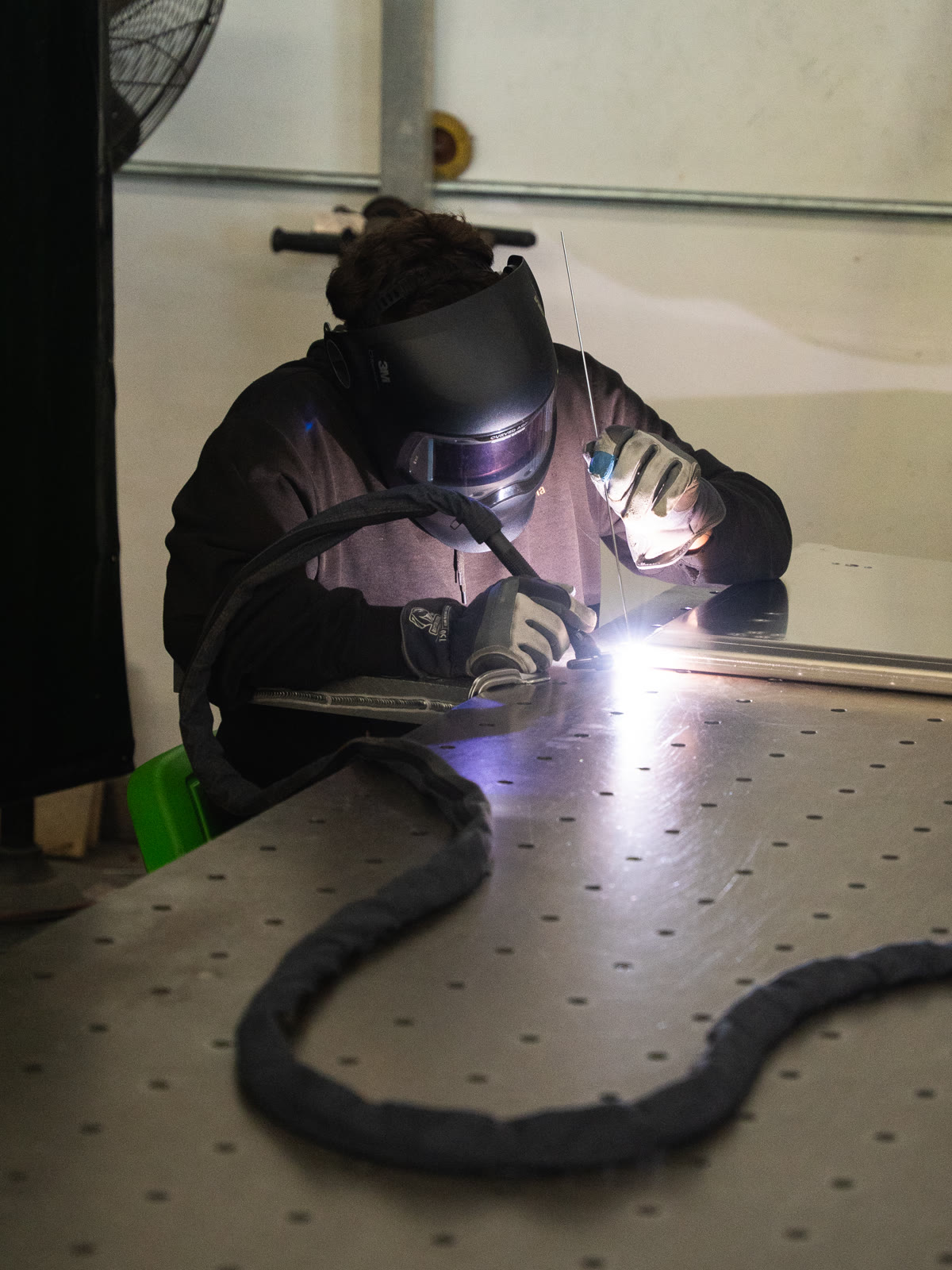

A helmeted technician leans over a metal assembly as a bright welding arc glows. — Close view of welding at the fabrication table.

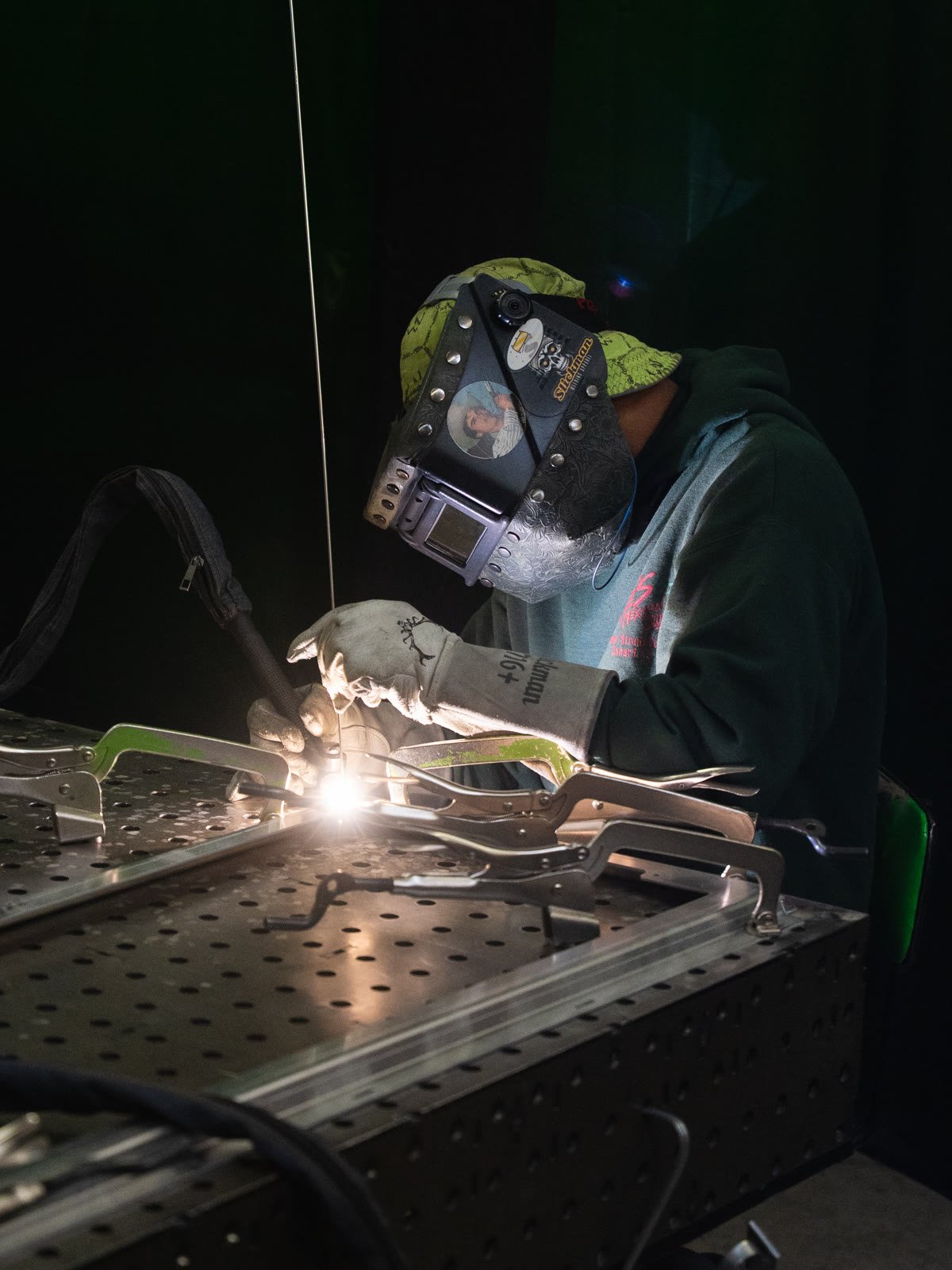

A helmeted technician works at a perforated table with sparks and a bright welding arc. — A technician welds a small metal assembly.

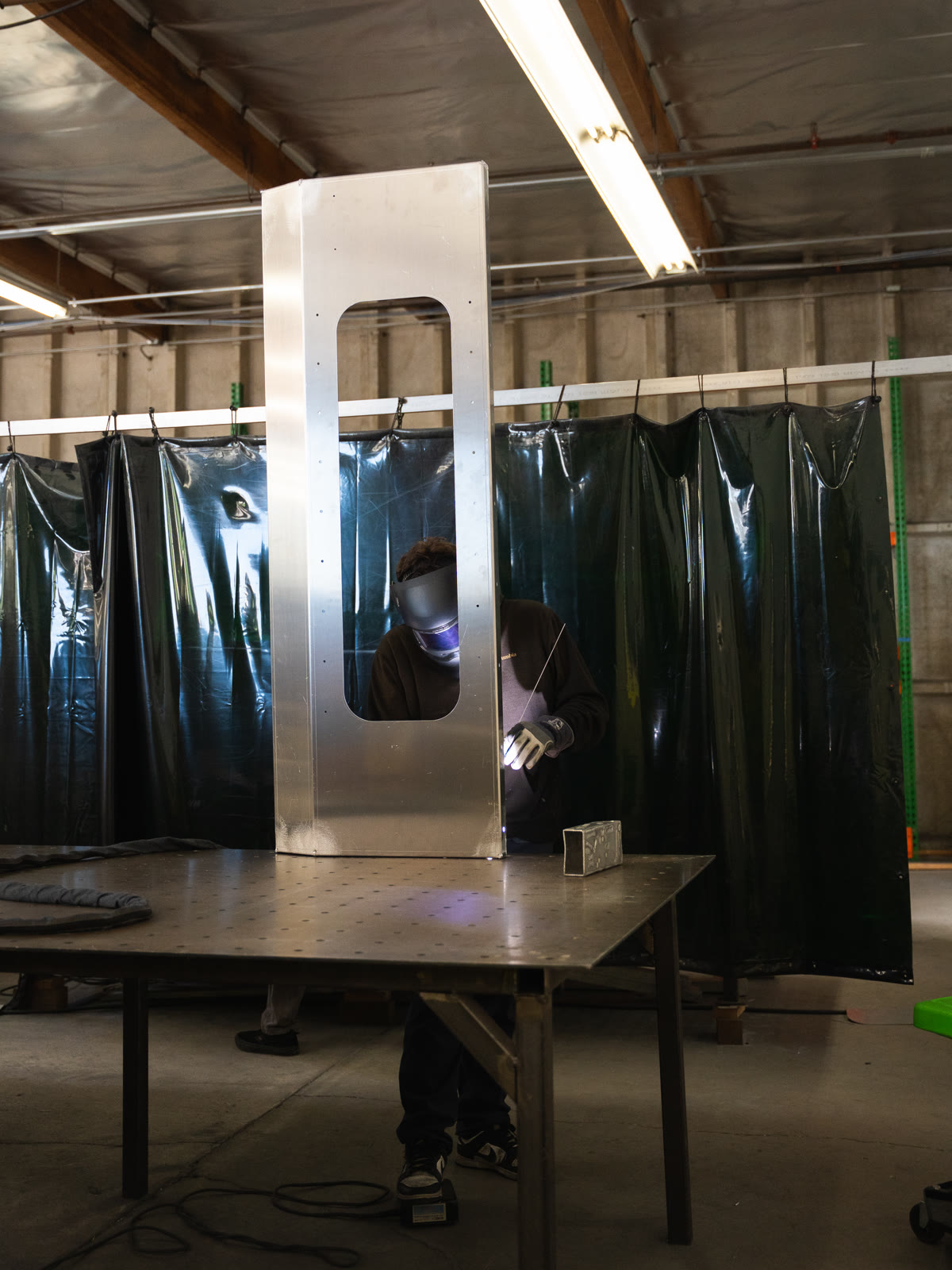

A tall silver rectangular frame stands on a wheeled table in front of dark welding curtains. — An upright welded frame at the fabrication station.

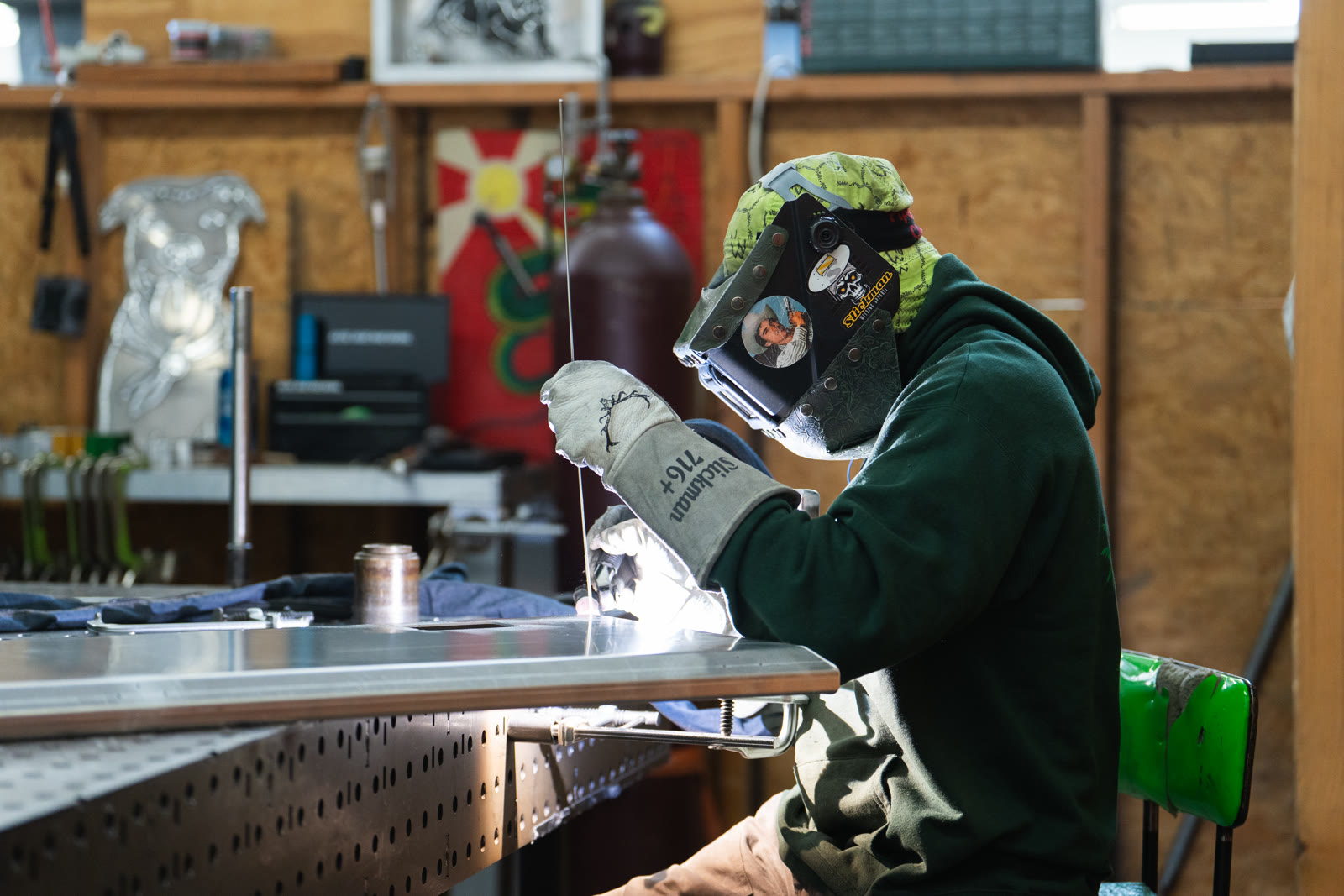

A helmeted technician holds a welding torch over a silver frame on the perforated table. — A technician welds a rectangular metal frame.

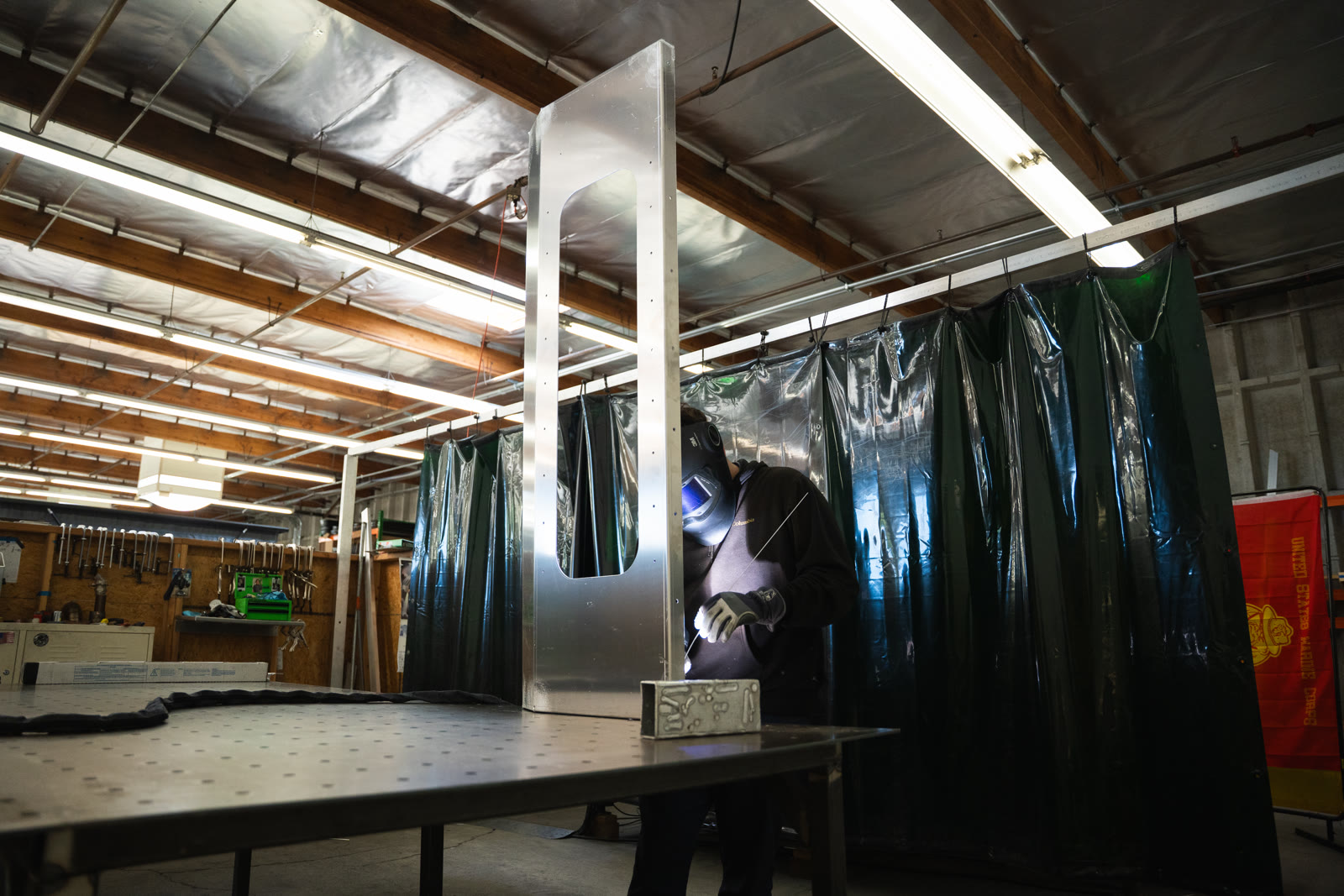

Wide factory view with a tall silver frame in the foreground and a technician welding behind it. — Welding continues behind an upright frame.

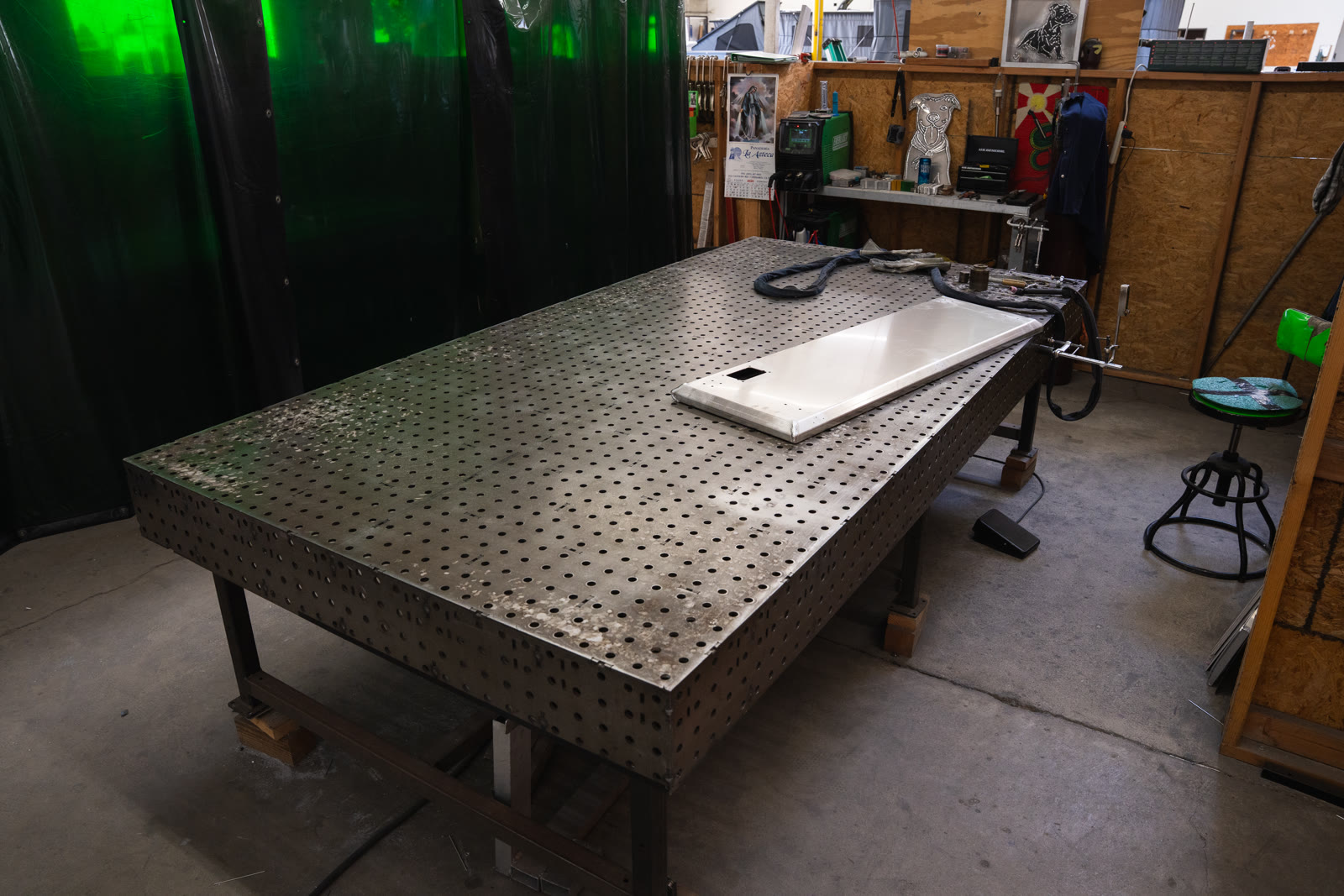

A large perforated fabrication table holds a rectangular frame and smaller silver pieces beneath green welding curtains. — Metal components arranged on the welding table.

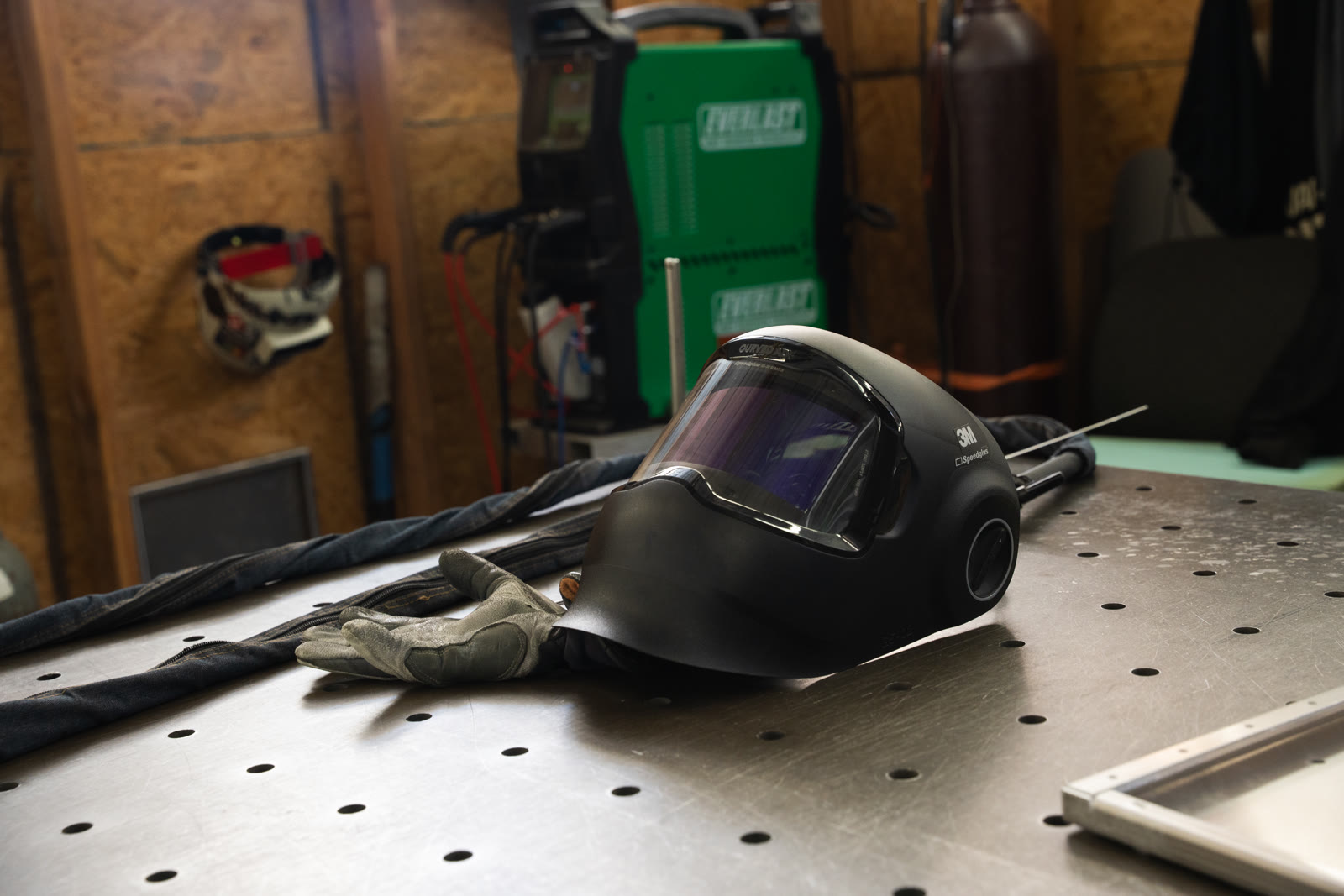

A dark welding helmet and gloves resting on the perforated fabrication table. — Protective gear at the welding station.

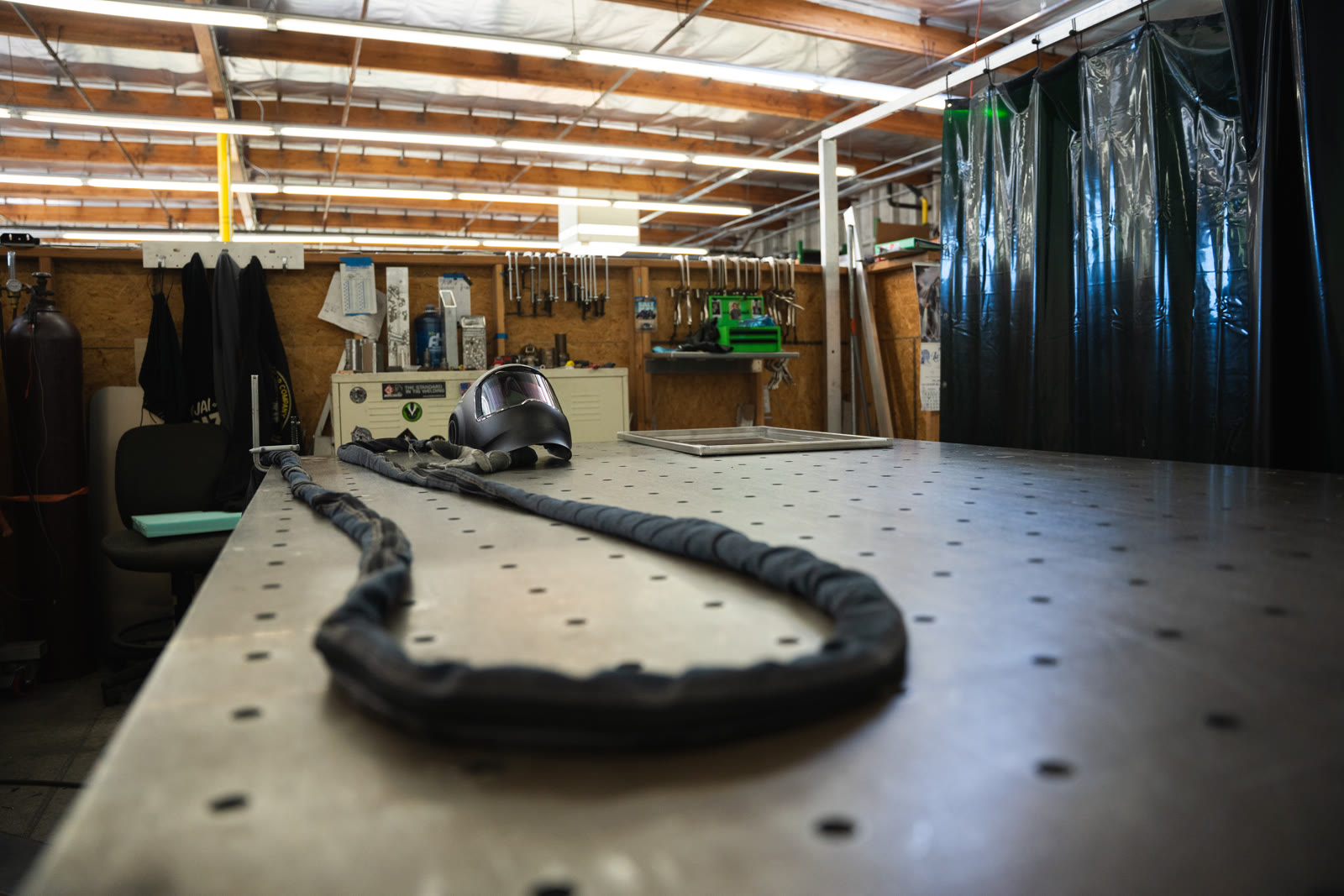

A dark coiled cable or hose resting on a perforated metal worktable in the welding area. — Welding cable laid across the fabrication table.

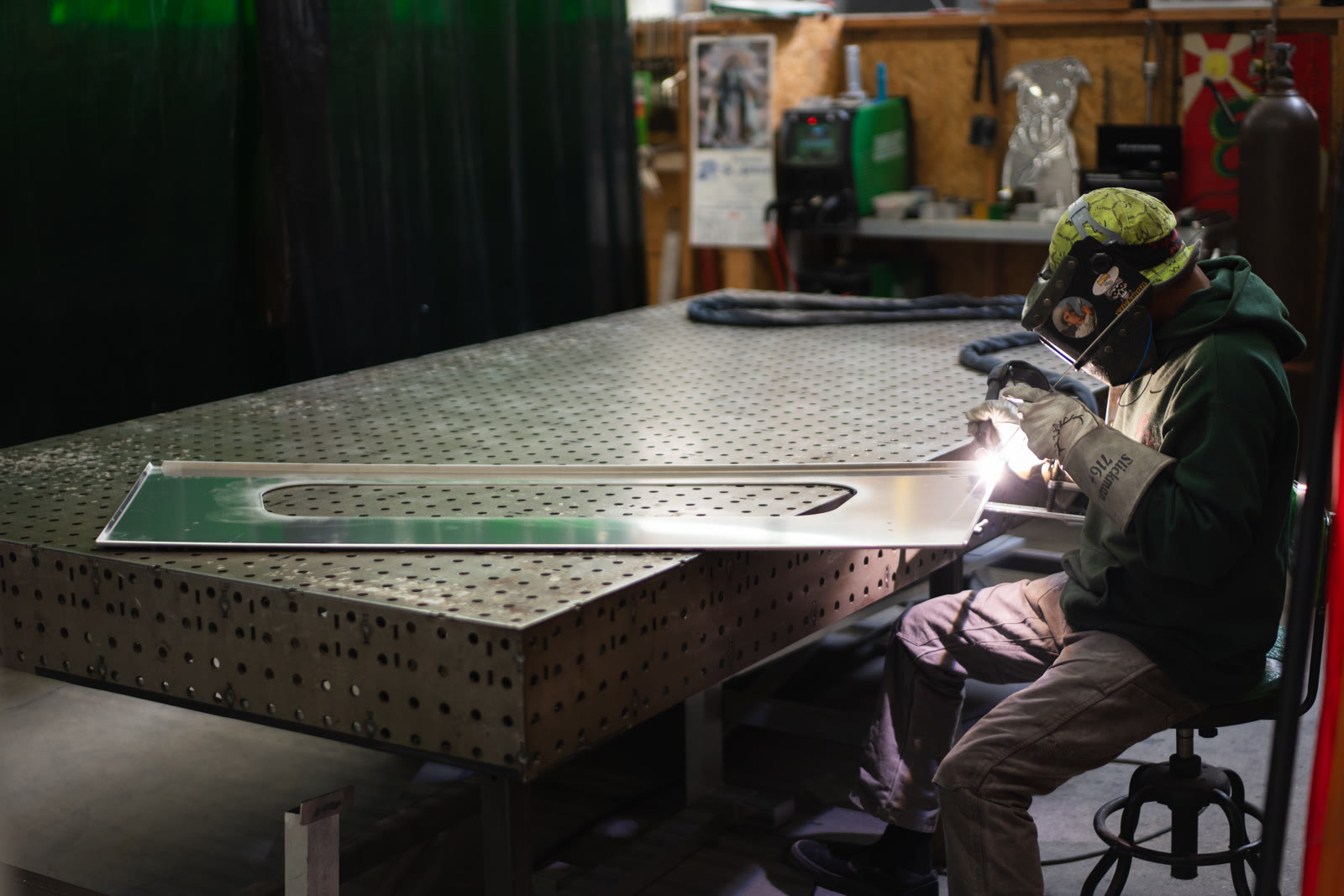

A helmeted technician seated at the corner of a large perforated table while welding a silver frame. — A technician welds along a rectangular frame.

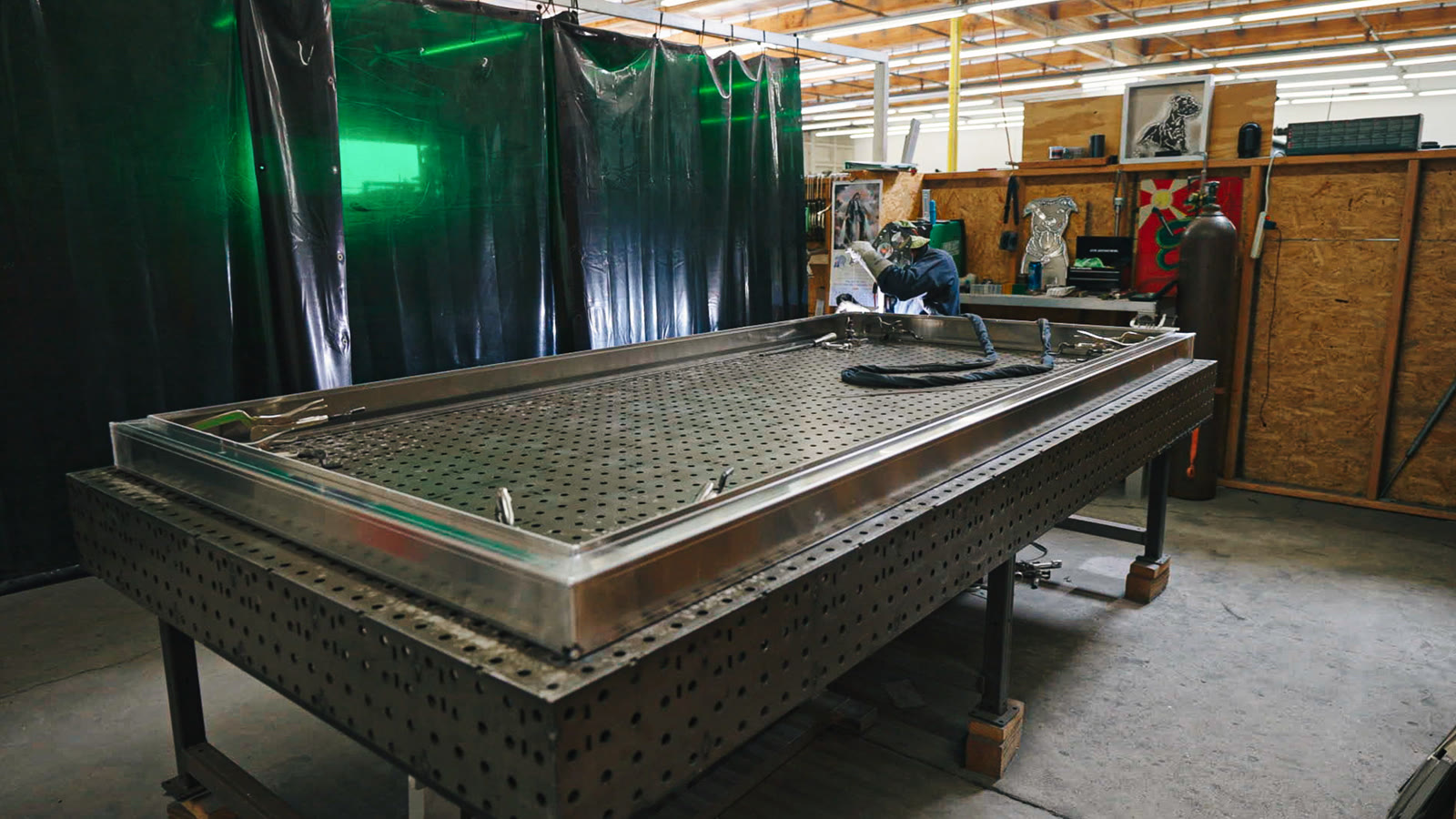

Wide view of a large silver rectangular frame laid across the perforated fabrication table. — A rectangular frame rests on the welding table.

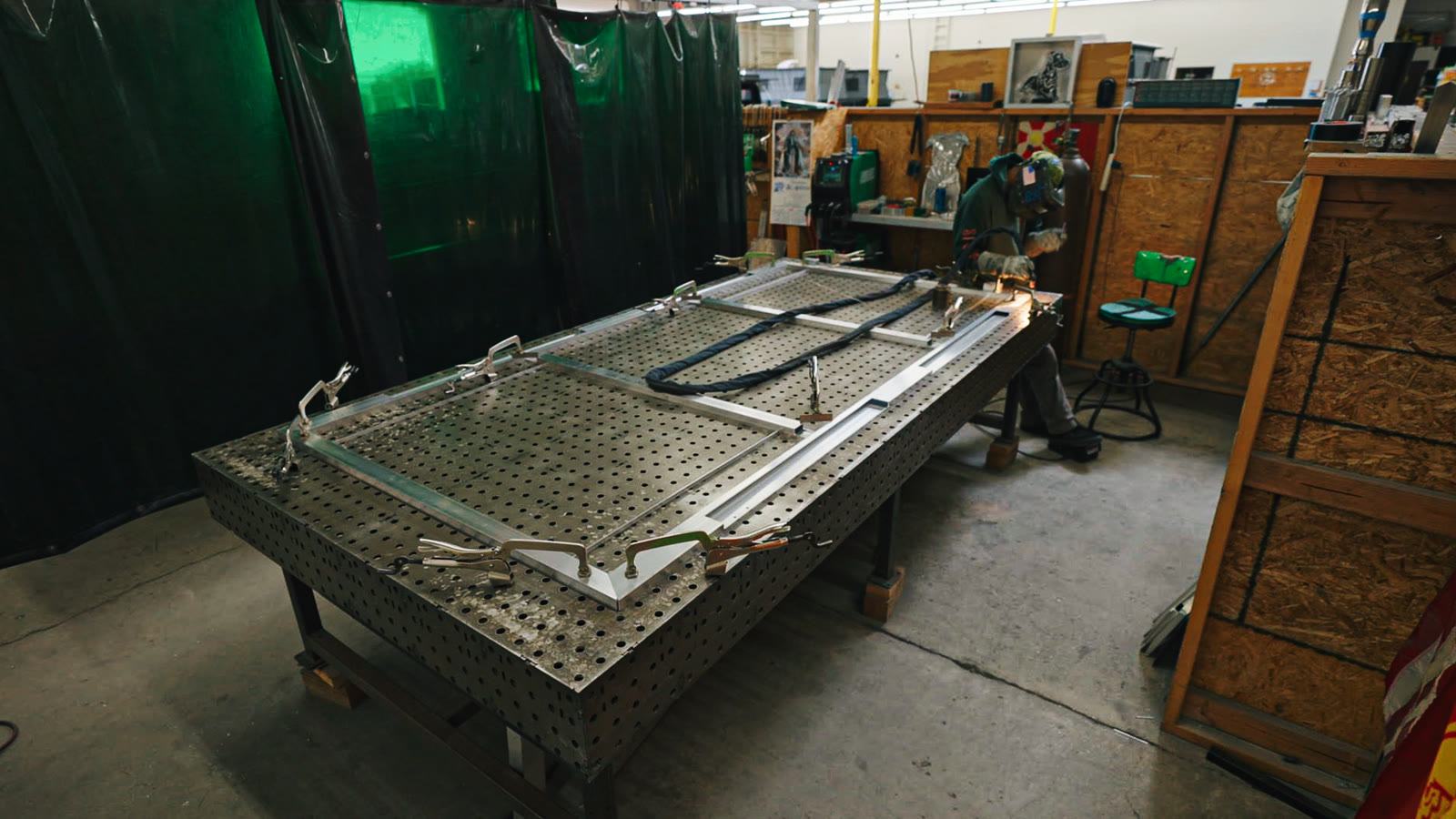

A long silver frame sits diagonally across the perforated table near the welding curtains. — An angled frame is positioned for welding.

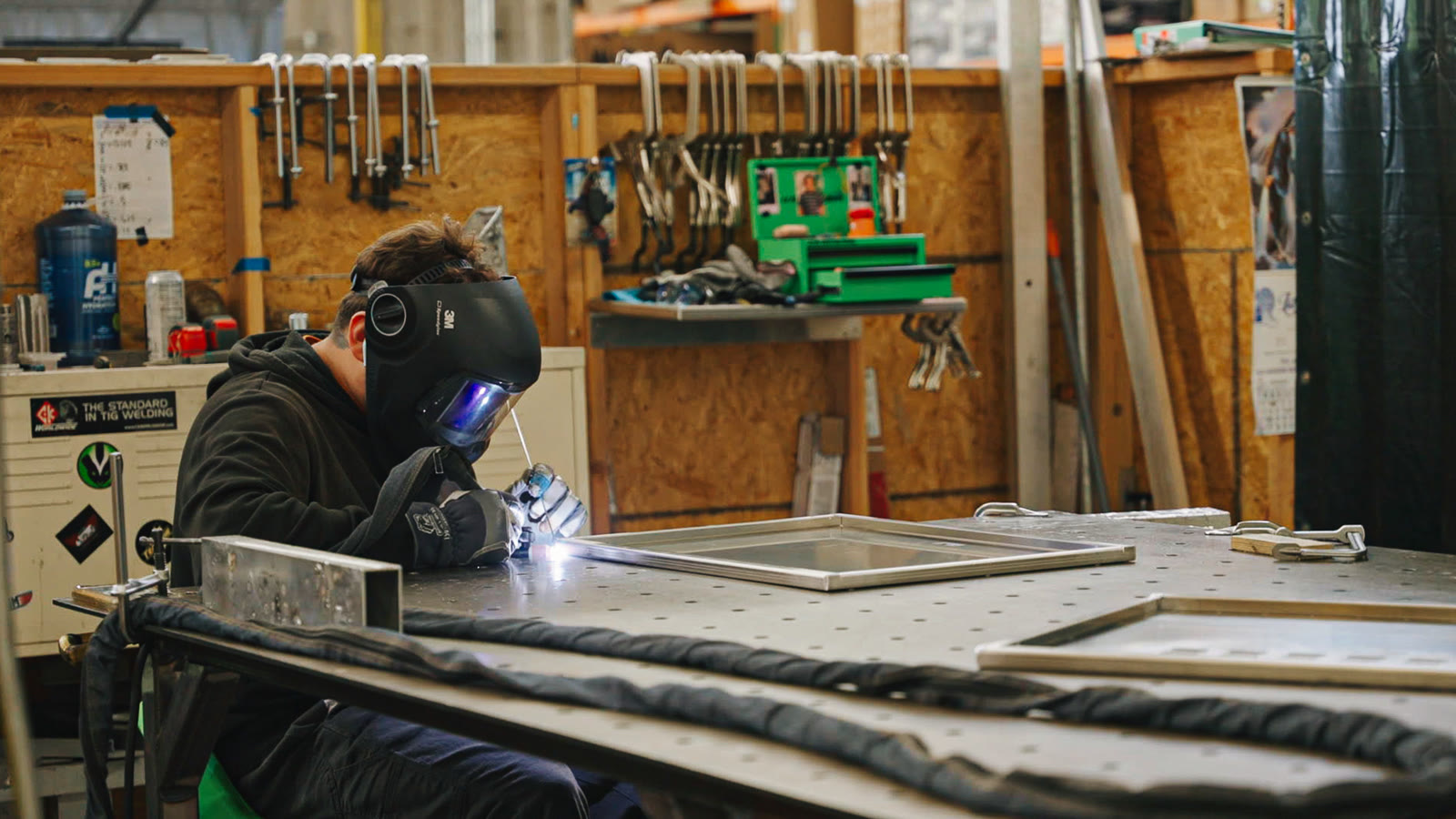

A helmeted technician works along a long silver assembly supported on the fabrication table. — A technician welds a long metal assembly.

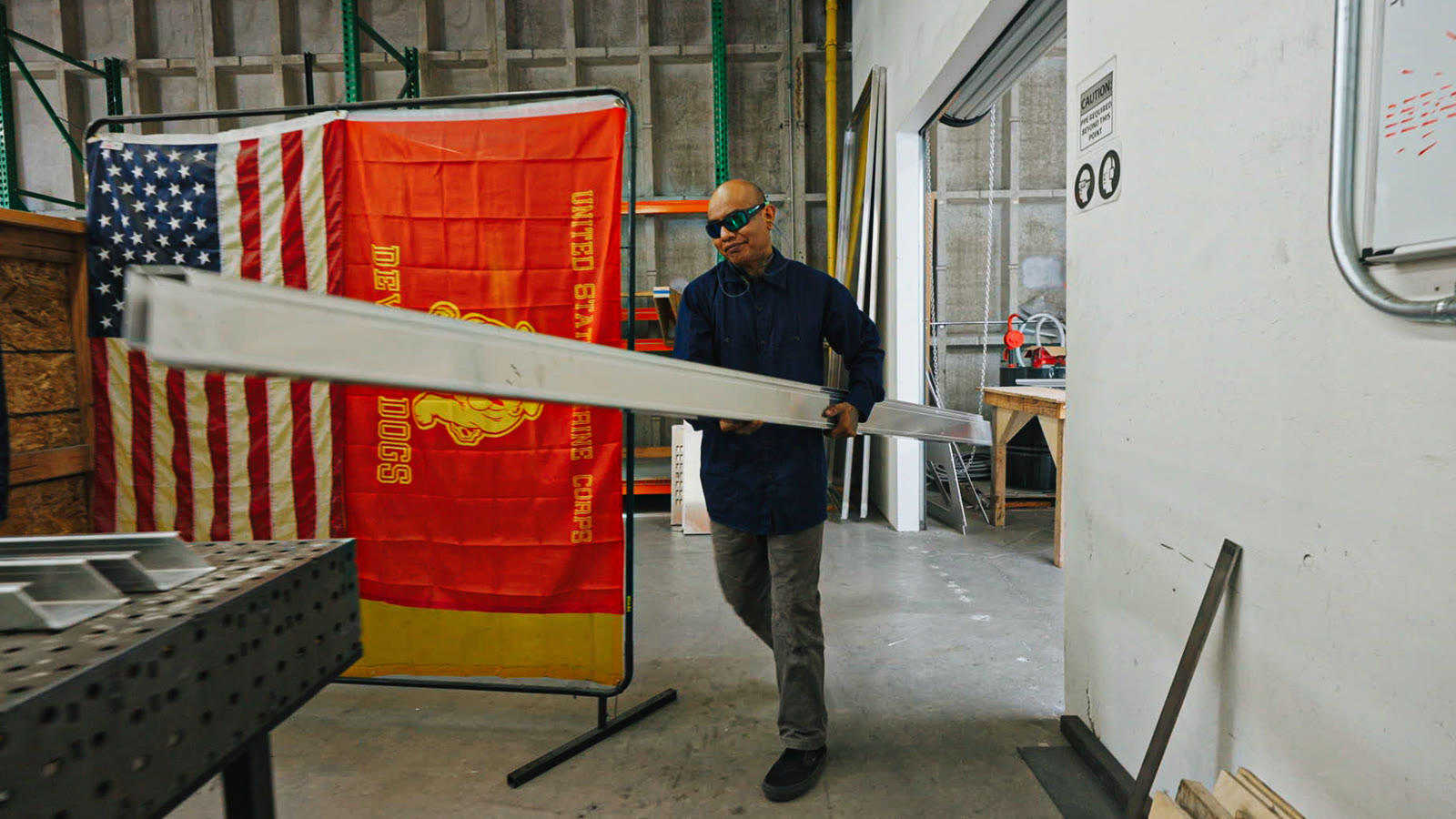

A worker holding a long rectangular silver tube beside a trailer and two hanging flags. — A worker carries a long metal tube through the fabrication area.

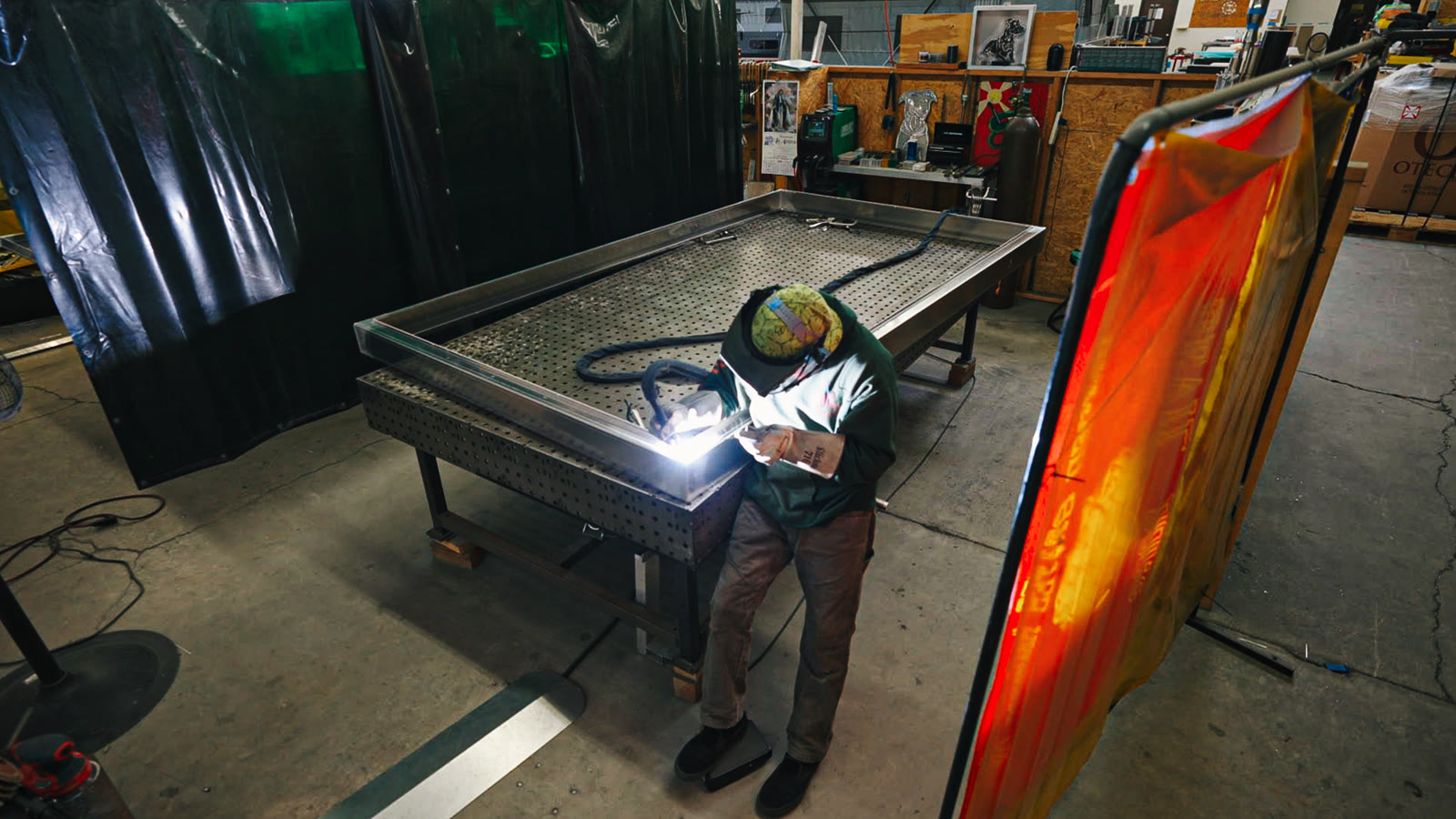

A helmeted technician welding near the corner of a rectangular frame on the perforated worktable. — Overhead view of active welding at the table.

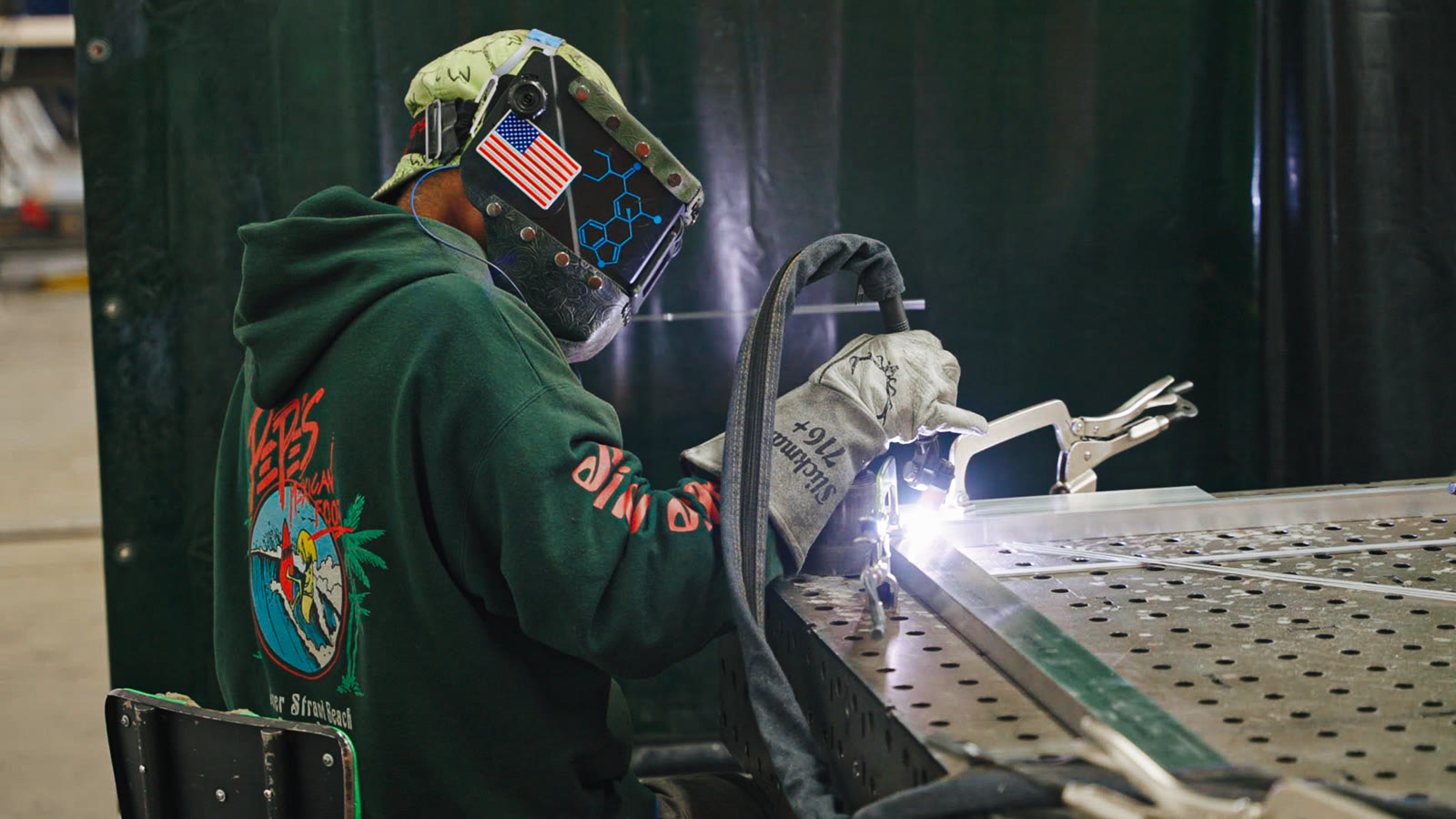

A helmeted technician seen from behind as a bright arc lights the silver frame on the table. — Rear view of a technician welding a metal frame.

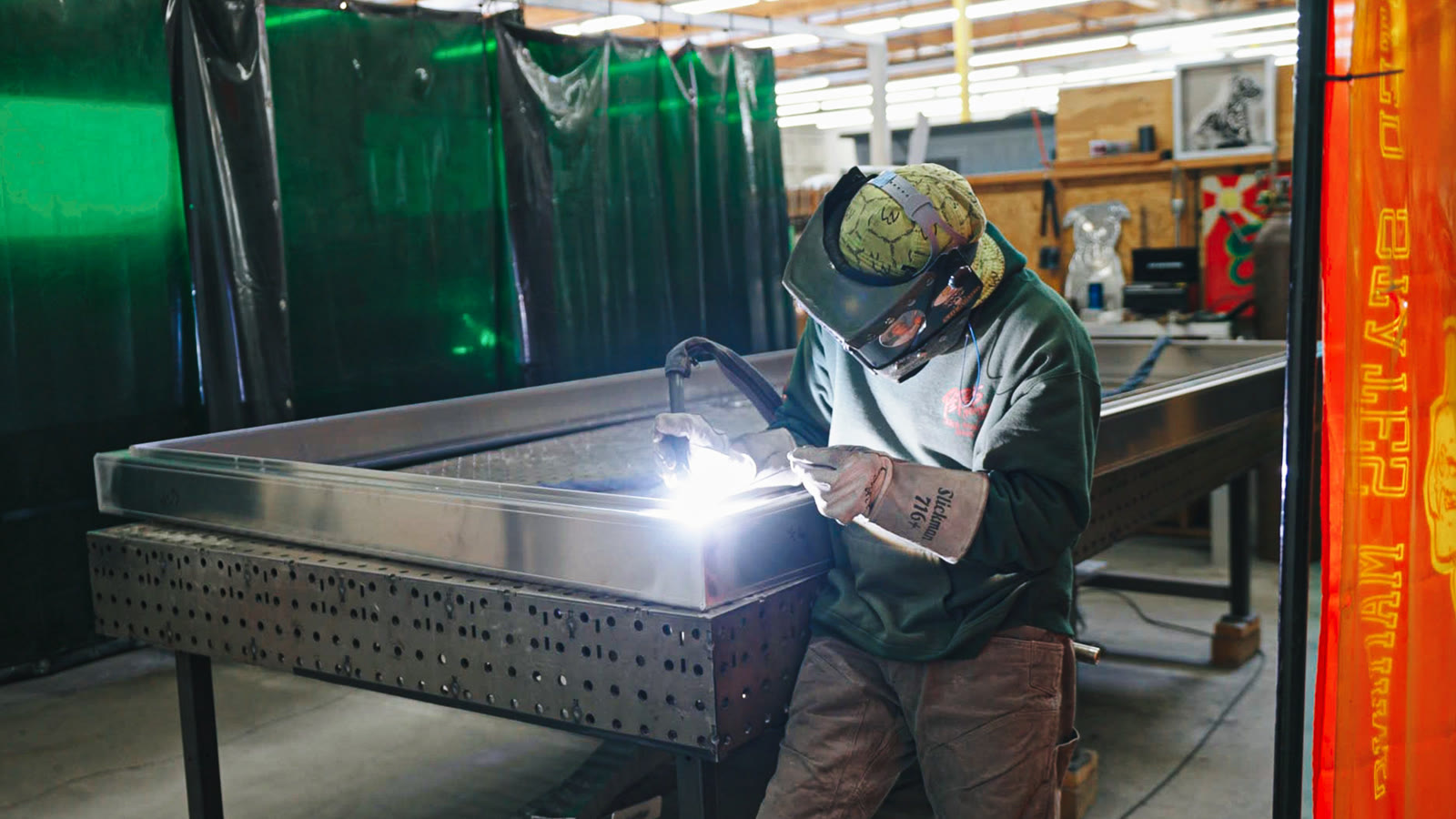

A helmeted technician leaning over a silver frame with a bright welding arc at its corner. — A technician welds the corner of a rectangular frame.

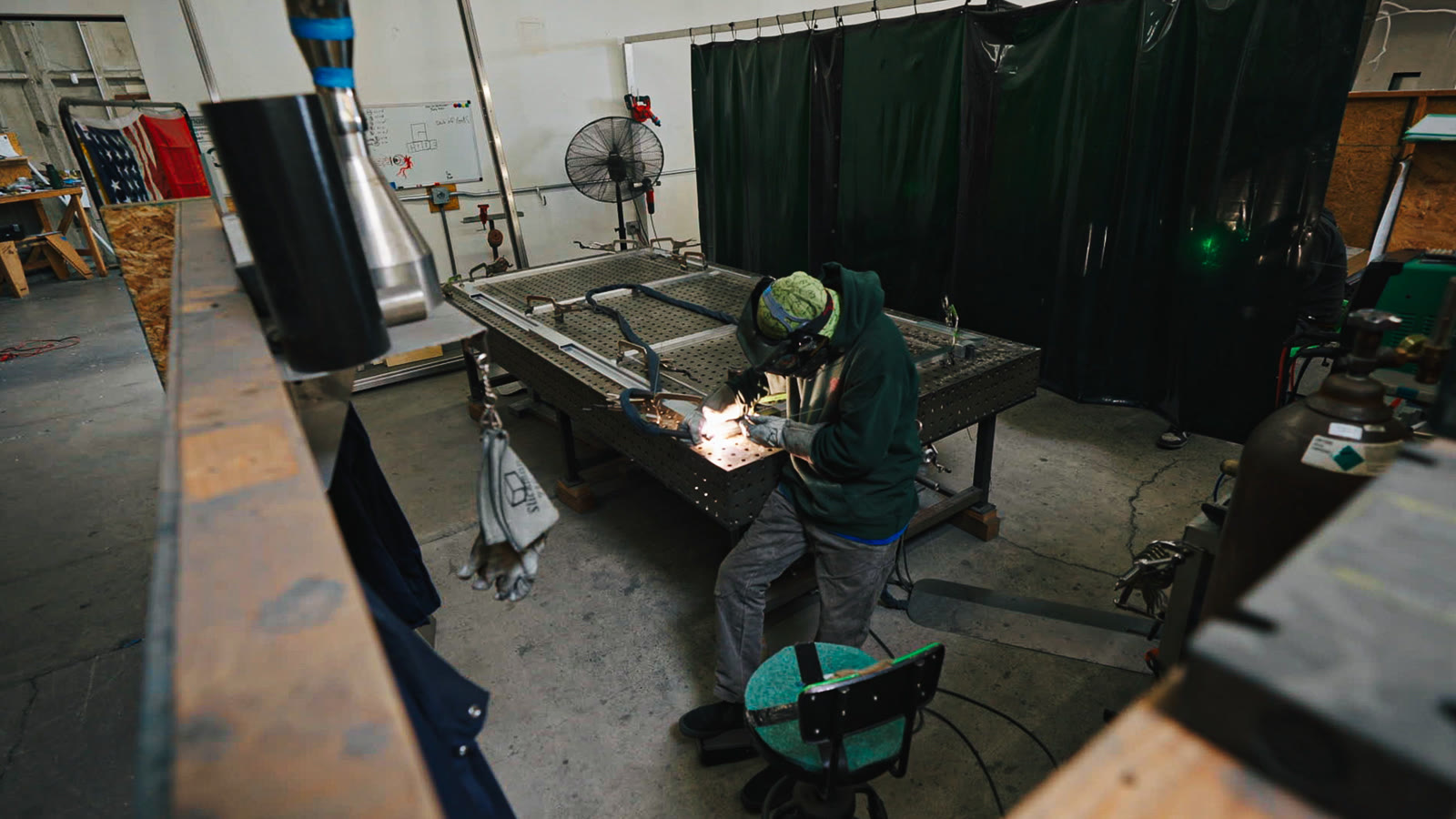

A technician welding a metal frame on the large perforated table, seen from above the station. — High-angle view of welding at the fabrication table.

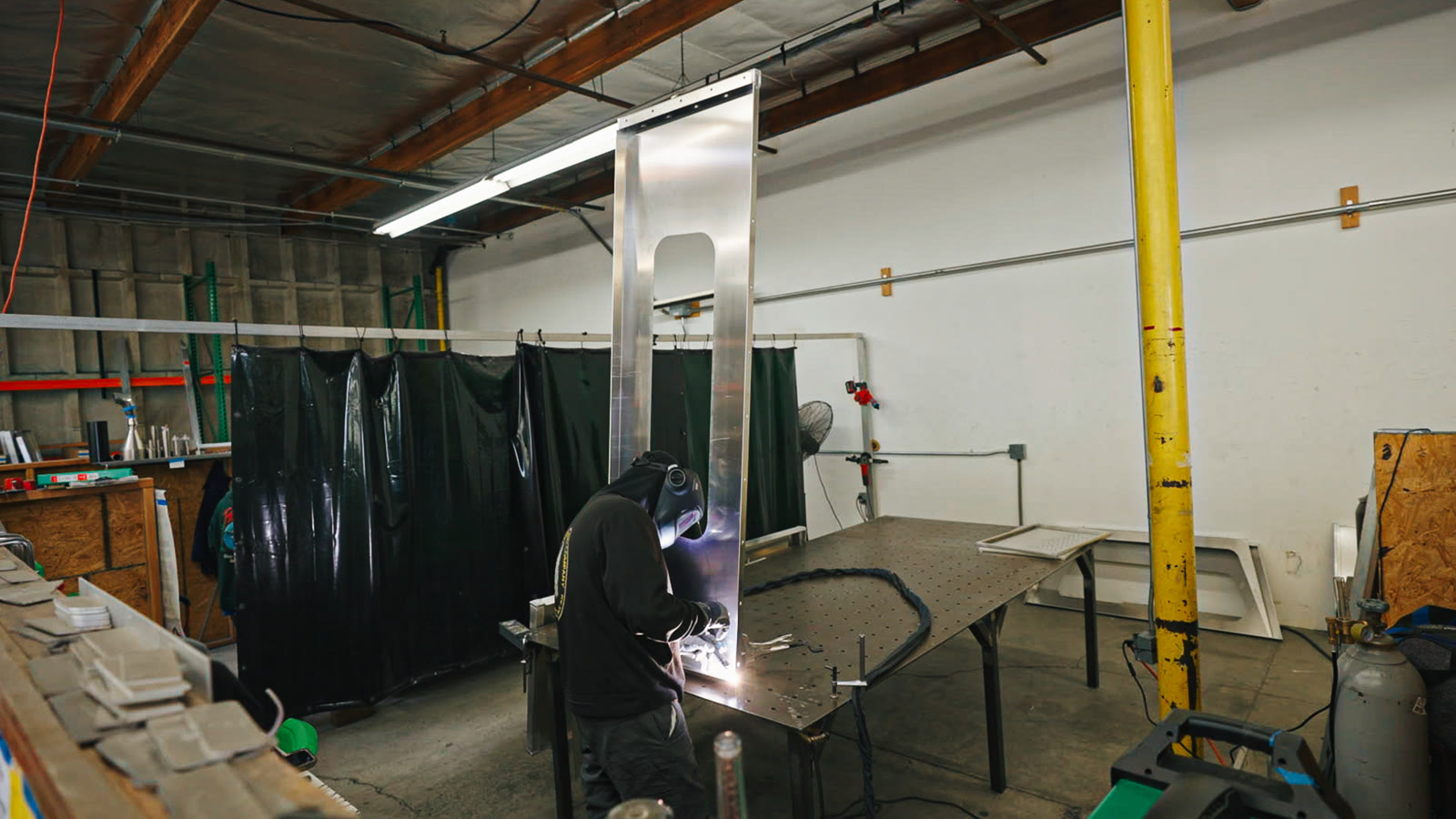

Upright silver frames, green welding curtains, and technicians working across the fabrication area. — Wide view of the active welding area.

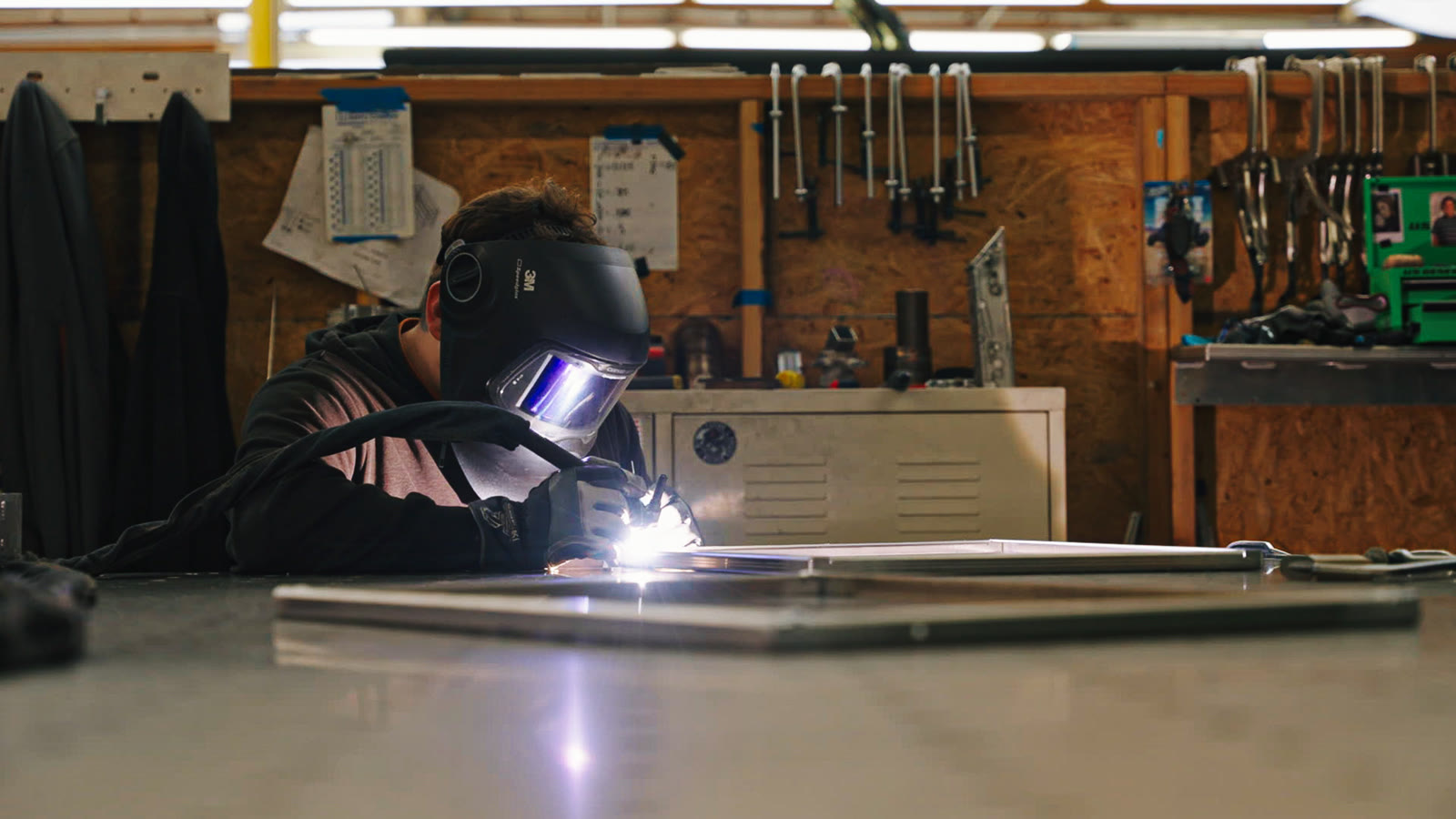

A bright welding arc seen through the opening of a low silver rectangular frame. — Low view of a welding arc inside a metal frame.

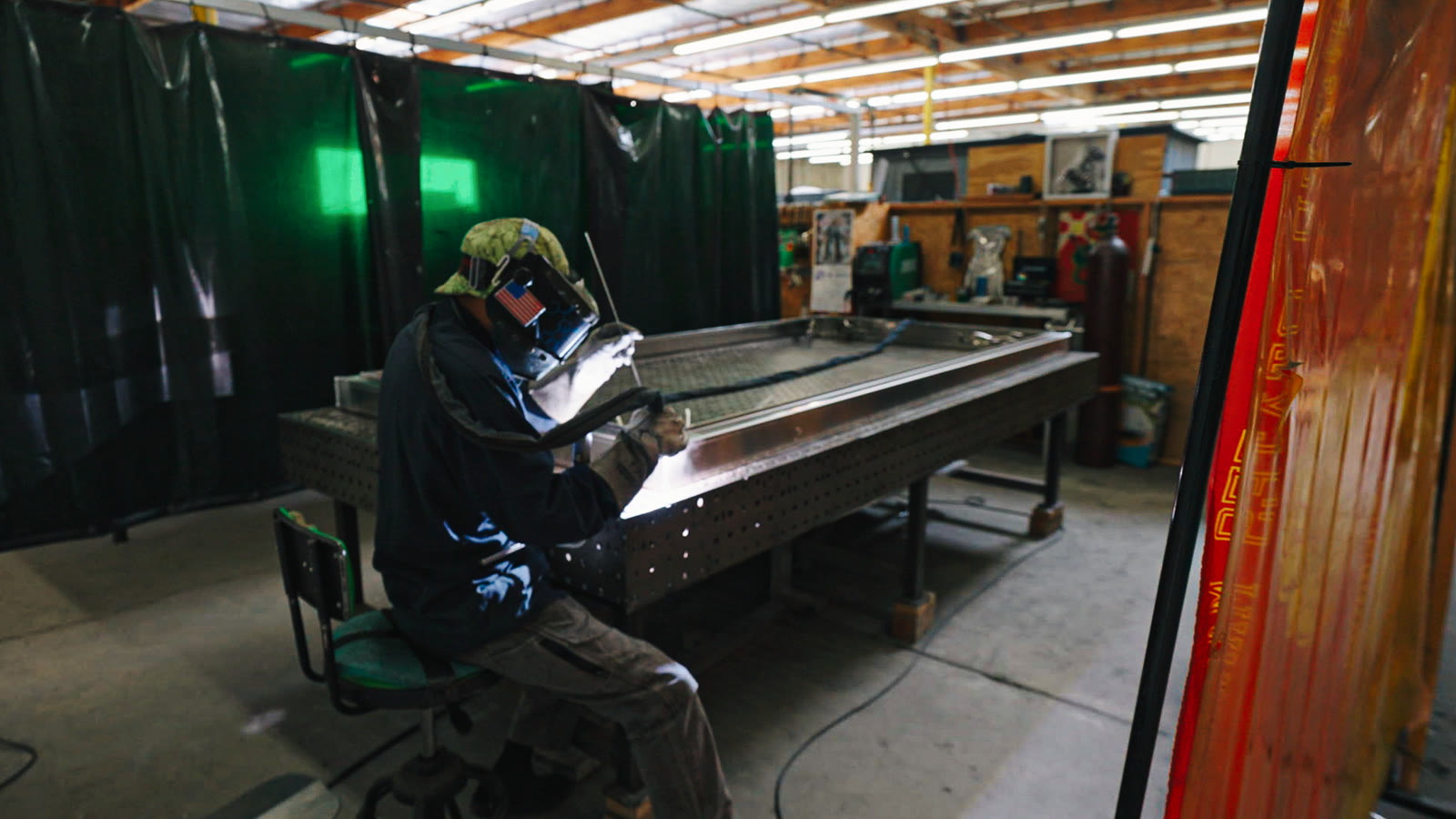

A helmeted technician seated beside the perforated fabrication table while welding a silver frame. — Side view of a technician welding at the table.

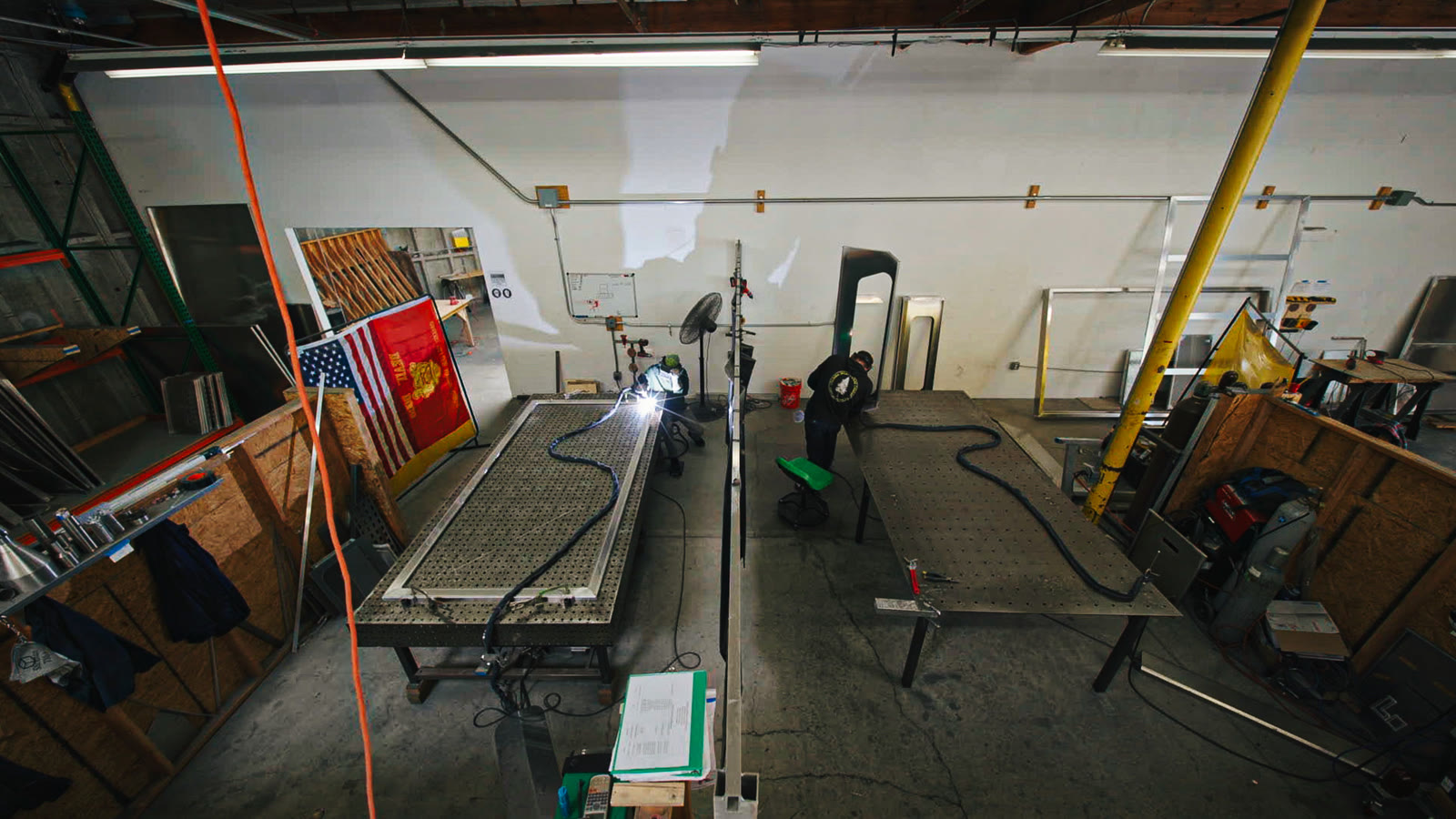

Two long perforated worktables, welding leads, and fabrication equipment seen from above. — Overhead view of the welding tables and equipment.

What happens

Formed pieces are fitted, tacked, and clamped before being TIG-welded. The welder works around the part to manage heat-driven movement, after which the exterior welds are ground and polished.

Why this step exists

Welding joins the formed pieces into rails and body panels. Grinding brings the visible exterior flush before the camper reaches its fit check and final finish.

What to notice

The fixture does not replace operator judgment because aluminum moves as it heats. After the outside is polished, Thomas points to the bead left underneath as the practical weld-penetration check he uses.

Source and scope: Thomas from Topo Toppers · Manufacturer process explanation, not an independent structural test.

Stage 04

Test-fit before powder coating

Raw aluminum camper components clamped together in the factory — The uncoated camper components are assembled for a fit check.

A worker measuring the raw aluminum camper assembly — The assembly is measured before the parts leave for finishing.

Two workers checking the fit of raw aluminum camper components — The team checks how adjoining components fit together.

What happens

Before powder coating, the raw-aluminum body and roof components are clamped together for a complete fit check. The bed pan is measured for that particular assembly, and the remaining interfaces are checked before the pieces leave for finishing.

Why this step exists

The mock-up catches alignment problems introduced across cutting, bending, and welding before a finished part becomes more expensive to remake.

What to notice

Accurate machines do not remove accumulated manufacturing variation. This is the deliberate human-verification point between fabrication and powder coating.

Source and scope: Thomas from Topo Toppers · Point-in-time process description; no production tolerance records were reviewed.

Stage 05

Cut and sew the tent

A plotter cutting flexible material from a digital pattern — The plotter cuts the flexible camper components from digital patterns.

A worker sewing flexible camper material at the Topo Toppers factory — Cut pieces are sewn and assembled in-house.

Flexible camper material moving through the cutting plotter — The same cutting system handles several flexible camper materials.

What happens

A plotter cuts the tent fabric, clear window vinyl, mattress material, and roof vinyl from digital patterns. The tent components are then sewn and assembled in-house.

Why this step exists

These are the flexible parts that must fold with the camper while managing sun and weather exposure. Material choice, seam placement, overlaps, and construction all contribute.

What to notice

Thomas puts as much emphasis on construction and care as on the fabric itself. Seams are arranged to shed water, while keeping the tent clean, dry, tucked, and unpinched remains part of caring for it.

Source and scope: Thomas from Topo Toppers · Material and care explanation, not an independent waterproofing or service-life test.

Stage 06

Assemble and seal the camper

Thomas showing a roof component during camper assembly — Roof components receive hardware and finishing materials during assembly.

Finished camper components staged in the Topo Toppers assembly area — Finished components are staged before they are assembled into the camper.

A worker assembling the tent and finished camper shell — The tent, roof, and lower body come together during final shell assembly.

What happens

After powder coating, the roof receives hardware, gaskets, and reflective vinyl, while the lower panels are taped and bolted together. The tent, roof, hinge panels, struts, doors, and perimeter sealant then turn those subassemblies into the camper shell.

Why this step exists

This is where finished components become one camper while the sealing interfaces remain accessible. Tape or foam between bolted interfaces and perimeter sealant perform different jobs.

What to notice

This stage contains the single rejected top rail Braxton observed. It shows one decision made during this build, not a defect rate, rejection rate, or guarantee about every camper.

Source and scope: Thomas’s process account plus Braxton’s firsthand observation of one rejected rail.

Stage 07

Equip, inspect, and install

A close view of electrical work inside a camper during final equipment installation — Ordered electrical equipment is installed before final inspection.

A completed Topo Toppers camper staged inside the factory — A completed camper waits in the factory before handoff or installation.

A worker checking a completed camper during the final stage — The completed camper receives its final checks before handoff.

What happens

The ordered electrical and accessory equipment is installed, the front-access windows receive the additional sealing process shown during filming, and completed campers go through checklist-based final QC before shipment or truck installation.

Why this step exists

In the filmed sequence, final QC is the last documented checkpoint for integrated and supplied components before shipment or truck installation. Mounting then varies by the exact truck.

What to notice

The light configuration changed after filming, the window process applies to the front-access windows Thomas discussed, and mounting varies by truck. The closing service discussion is qualitative, not audited performance data.

Source and scope: Thomas from Topo Toppers + the process shown during filming · Equipment, window, and mounting details are time- and fitment-specific.

What this tour documents

It documents the process Braxton observed in Ventura and the explanations Thomas from Topo Toppers gave during filming.

What remains untested

This was not an engineering or durability test. WTTO did not measure weld strength, leaks, corrosion, production tolerance, powder-coat life, defect rates, or long-term owner results. Direct observations are separated from Thomas’s explanations and current published specifications.

Mesa options & upgrades

What can you add to a Mesa?

See listed factory choices, prices, and what each option changes. Confirm compatibility and requirements in Build & Compare.

Topo Toppers options and upgrades

87 factory options across the Mesa, Badlander, and Rincon.

Appearance

Black
Camper Color
Black exterior camper shell finish.
Offered on Mesa, Badlander, Rincon
Graphite
Camper Color
Dark Gray exterior camper shell finish.
Offered on Mesa, Badlander, Rincon
Light Grey
Camper Color
Light Gray exterior camper shell finish.
Offered on Mesa, Badlander, Rincon
White
Camper Color
White exterior camper shell finish.
Offered on Mesa, Badlander, Rincon

Access and entry

Sleep

Third Bed Panel
Third Bed Panel
Adds a removable third bed panel and matching mattress section to cover the pass-through space in the sleeping deck.
Offered on Mesa, Badlander, Rincon

Climate

Truma VarioHeat Propane Heater
Heater
Adds a factory-installed Truma VarioHeat propane forced-air heater. Placement is truck- and configuration-specific: it must be opposite the fuel tank, cannot share a side with a Tern window, and may conflict with a side access door on 5- and 5.5-foot beds.
Requires interior MOLLE panel
Offered on Mesa, Badlander, Rincon
Thermal Tent Liner
Insulation
Adds a removable liner for the upper pop-up area. It attaches to the installed Velcro and can remain in place when the camper closes.
Offered on Badlander, Rincon
Velcro Attachment Only
Insulation
Adds Velcro attachment points for a thermal tent liner without the liner itself.
Offered on Badlander, Rincon
MaxxAir 4500K
Roof Fan
Adds a MaxxAir 4500K roof fan for ventilation.
Offered on Mesa, Badlander, Rincon
MaxxAir 5100K Deluxe
Roof Fan
Adds a manually opened MaxxAir 5100K Deluxe roof fan with a built-in rain cover. This option is listed only for the Badlander and Rincon.
Offered on Badlander, Rincon
Roof Insulation
Roof Insulation
Adds the factory roof-insulation layer to the camper ceiling.
Offered on Mesa, Badlander, Rincon

Power

Lower LED Lights
Interior Lighting
Adds two interior LED light strips below the bed rails.
Offered on Badlander, Rincon
Mesa Lighting Package
Interior Lighting
Adds one ceiling LED light strip and two LED light strips below the bed rails.
Offered on Mesa
Upper and Lower LED Lights
Interior Lighting
Adds two ceiling LED light strips and two LED light strips below the bed rails.
Offered on Badlander, Rincon
Upper LED Lights
Interior Lighting
Adds two interior LED light strips on the ceiling.
Offered on Badlander, Rincon
Shore Power Port
Shore Power
Adds an exterior shore-power port for bringing campground power into the camper without routing a cable through the truck.
Offered on Mesa, Badlander, Rincon
100 Watt
Solar Panel
Adds a 100 watt solar panel package.
Offered on Mesa, Badlander, Rincon
200W
Solar Panel
Adds a 200 watt solar panel package.
Offered on Rincon
Cable Entry & 12G Wiring Only
Solar Panel
Adds a solar cable entry with 12 gauge wiring, without a solar panel.
Offered on Mesa, Badlander, Rincon
Dual 100 Watt Panels
Solar Panel
Adds two 100 watt solar panels. Panel layout depends on model, bed length, and roof space — Topo confirms the exact configuration before your camper is built.
Offered on Mesa, Badlander
Starlink Mini Port
Starlink
Adds a Starlink Mini port.
Offered on Mesa, Badlander, Rincon
Third Brake Light
Third Brake Light
Adds an installed and sealed camper brake light with a two-wire lead routed to the bed post. The vehicle-side connection is completed after delivery.
Offered on Mesa, Badlander, Rincon

Storage

Bench Top
Bench & Cubbies
Adds the interior bench top, adjustable legs, and truck attachment. The optional lower cubbies are not included; confirm fit for the exact truck and camper.
Offered on Mesa, Badlander, Rincon
Bench Top with Cubbies
Bench & Cubbies
Adds the interior bench top plus lower cubby storage with adjustable dividers and bungee retention. Confirm fit for the exact truck and camper.
Offered on Mesa, Badlander, Rincon

Exterior mounting
